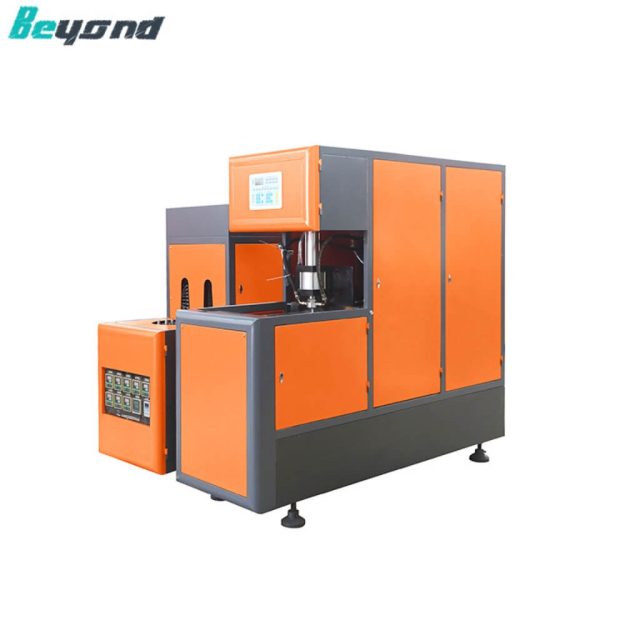

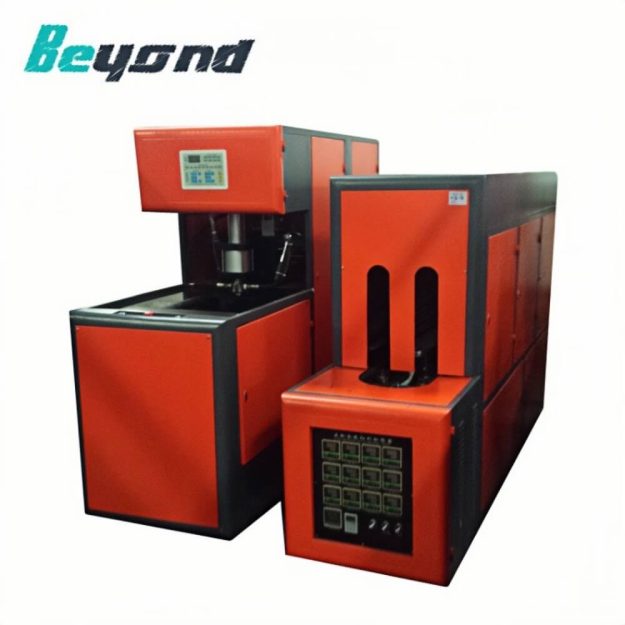

Semi Automatic Plastic Bottle Blowing Mold Machine
Using an integrated mic computer controller, with an OMRON control chip, the response speed is very quick and the timing is very precise. Use life durable and failure rate very low. It’s the revolutionary product of industrial control.
High responsiveness pneumatic components, action timely and precisely
Thorough safe operation mechanism, start-up with two hands, avoid the accident during the operation
Infrared heating technology, safe and energy conservation, no pollution of the environment. With the 8 rates adjustable temperature controller, make the temperature suitable for blowing.
Specifications
| Mould Cavity Number | pc | 2 |
| Theoretical Capacity | Pcs/h | 800-1200 |
| Max Bottle Volume | L | 3 |
| Mould Center Distance | mm | / |
| Max Neck Diameter | mm | 100 |
| Max Bottle Diameter | mm | 100 |
| Max Bottle Height | mm | 350 |
| Total Install Power | kw | 15 |
| Appx Power Consumption | kwh | 6 |
| Voltage/ Frequency | V/HZ | 380V/50HZ or Customize |
| Machine Size | m | 1.65*0.65*1.65 |
| Machine Weight | KG | 570 |
| Preform Feeder Size | m | 1.8*0.65*1.35 |
| Preform Feeder Weight | KG | 230 |
| Low Pressure( Actions) | Bar | 7~8 |
| Low Pressure Air consumption | m3/min | 0.7 |
| High Pressure( Blowing) | Bar | 20~30 |
| High Pressure Air consumption | m3/min | 0.8 |
| Operating Pressure | Bar | 5 |
| Temperature Range | ℃ | 5~10 |
| Water Consumption | L/min | 30 |
| Chiller capacity | HP | 3 |
Video
Description
Technology Advantage
Special design, high rigid compound die structure
Wide adaptability, suitable for every type of mould thickness
Adjust convenience
No mould rolling out
More energy conservation, no need for much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke, quick action
All ZG45 casting, with a long timing process, and very small transformation, can meet your precise request 100%
Hig dead-weigh, ensure the steady during the operation
