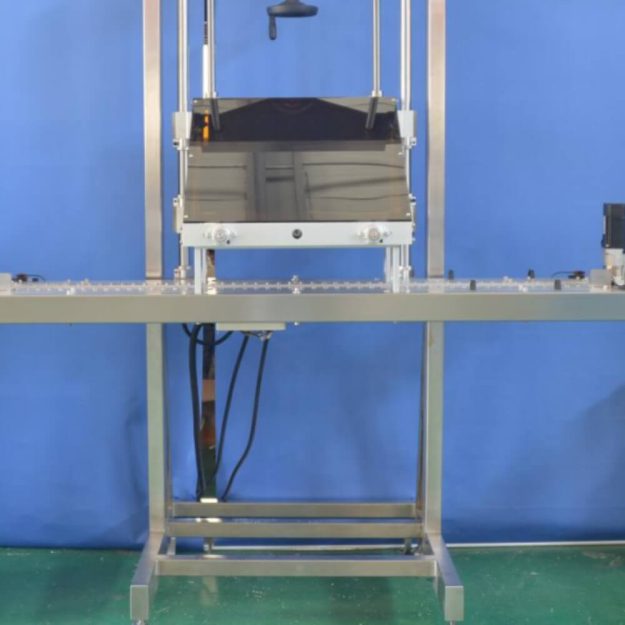

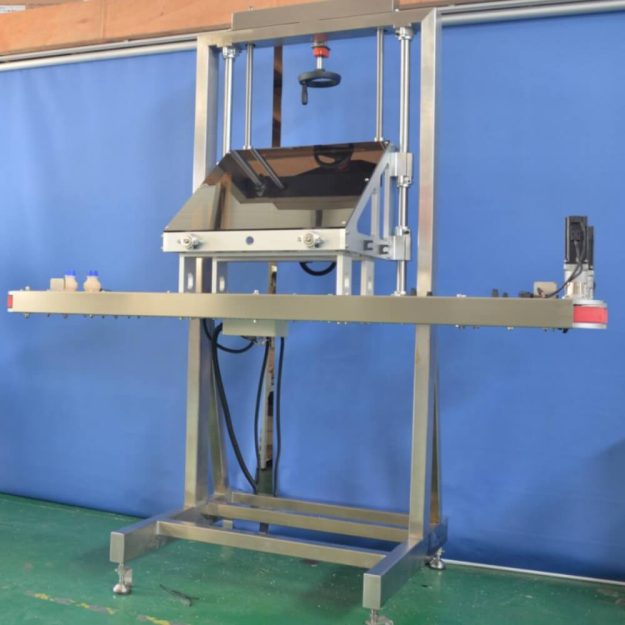

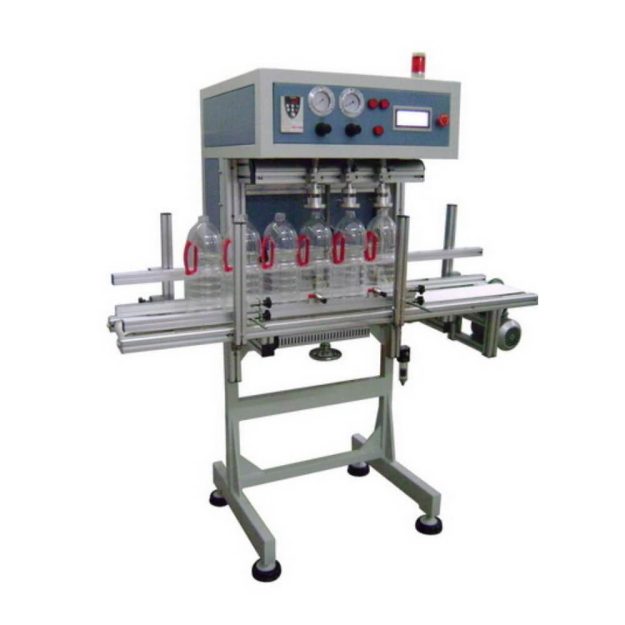

Plastic Bottle Leak Detector – High-Accuracy Bottle Leak Testing Machine
Our Plastic Bottle Leak Detector is an advanced inspection machine designed to automatically detect leaks in plastic bottles before filling and packaging. With precise air pressure technology and a smart rejection system, it ensures only leak-free bottles continue down the production line, saving costs and improving your final product quality.
Specifications
| Model | BY-1000 |
| Applicable Bottle Size | 200ml – 2000ml |
| Bottle Material | PET / HDPE / PP |
| Detection Method | Air Pressure Drop Test |
| Detection Accuracy | ≥ 0.2 mm leak |
| Inspection Speed | Up to 8,000 BPH |
| Air Pressure Requirement | 0.5–0.7 MPa |
| Power Supply | AC 220V / 50Hz |
| Dimensions (L×W×H) | 1500 × 800 × 1600 mm |

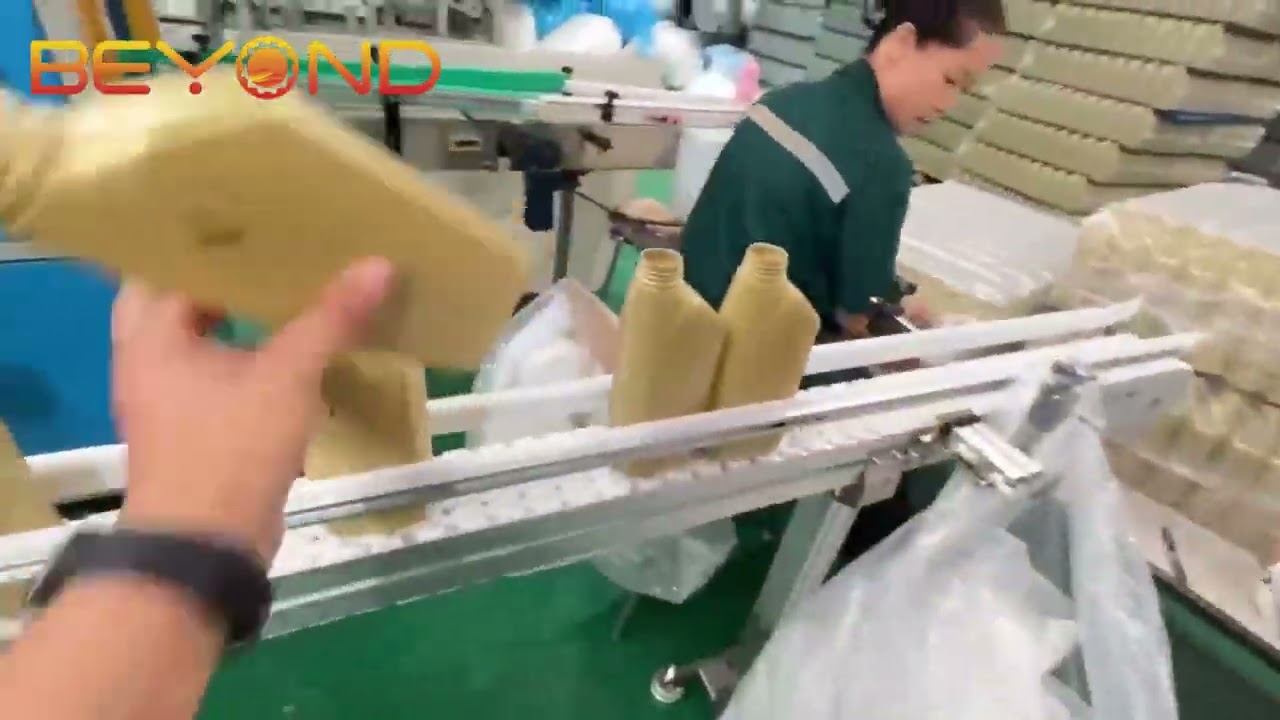

Video
Description
Key Features of Our Leak Detector
-
High Sensitivity: Detects micro-holes ≥ 0.2 mm
-
Fully Automatic: Integrated with conveyor belt and rejection system
-
Wide Bottle Range: Works with 200ml to 2L PET, HDPE, or PP bottles
-
Touch Screen Interface: Easy operation and parameter adjustment
-
Real-time Fault Detection: Ensures fast rejection of leaking containers
-
Customizable Design: Adapted to different bottle shapes and line speeds
Applications
This leak detector is suitable for various industries:
-
Bottled water production lines
-
Juice and soft drink bottling plants
-
Chemical and detergent bottle packaging
-
Pharmaceutical plastic bottle inspection
