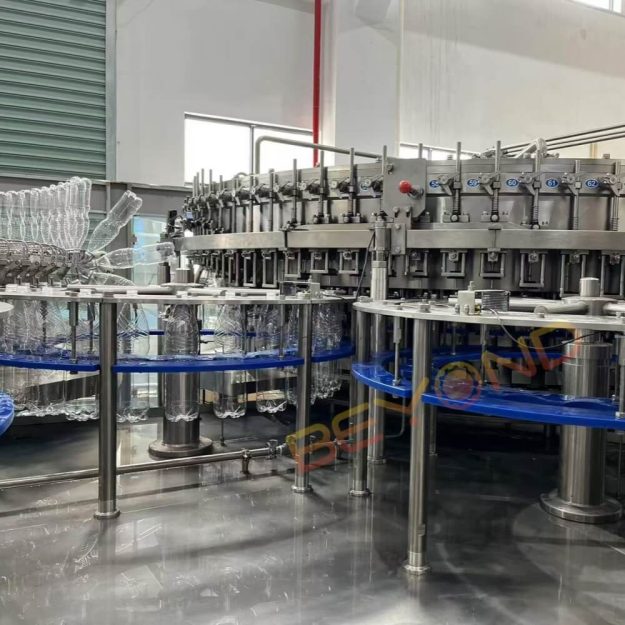

High Speed 24000BPH Plastic Bottle Carbonated Drink Filling Machine

A 24000BPH plastic bottle carbonated drink filling machine is an advanced high-speed beverage filling system designed for efficient bottling of carbonated drinks. It offers:

  • High-speed performance – Up to 24,000 bottles per hour (BPH)

  • Precision filling – Ensures accurate CO₂ retention and minimal product waste

  • Versatile design – Compatible with PET and plastic bottles of various sizes

  • Fully automatic operation – Seamless integration with capping and labeling systems

Get A Quote

Specifications

Model 24000BPH Carbonated Drink Filling Machine
Production Capacity 24,000 bottles per hour (500ml)
Bottle Type PET / Plastic Bottles
Bottle Size 250ml – 2L
Filling System Isobaric (Pressure Filling)
Rinsing Heads 84
Filling Heads 84
Capping Heads 14
Air Pressure 0.6 MPa
CO₂ Pressure 0.15-0.35 MPa
Power Consumption 8-10 kW
Machine Material SUS304 / SUS316 Stainless Steel
Control System PLC with Touchscreen Interface

Video

YouTube video

Description

Rinsing Part

The rinsing unit ensures that bottles are thoroughly cleaned before filling. Key features include:

  • 84 Rinsing Heads for efficient multi-bottle cleaning.
  • High-pressure water spray to remove dust and contaminants.
  • Stainless steel clamps to hold bottles securely.
  • Automatic bottle inversion system for complete interior washing.

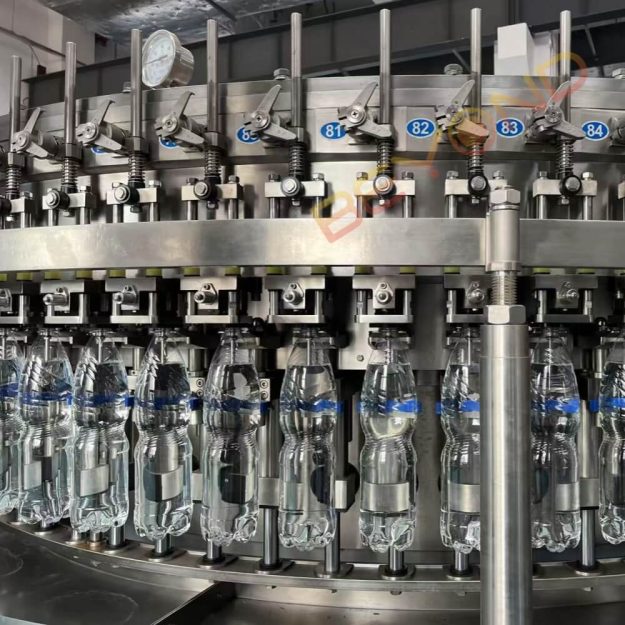

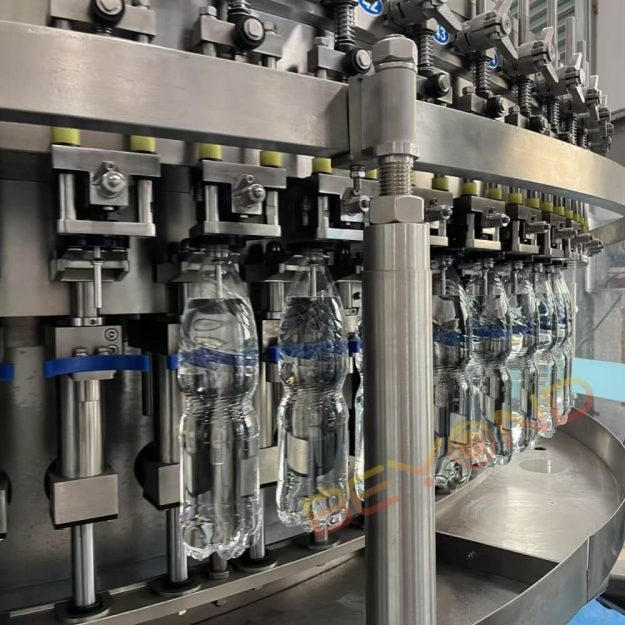

Filling Part

The filling section is designed to maintain carbonation levels and prevent foaming.

  • 84 Filling Heads with isobaric filling technology.
  • CO₂ back-pressure control to preserve beverage quality.
  • Non-contact filling nozzles to minimize contamination.
  • Liquid level control system for accurate and consistent filling.

Capping Part

The capping system ensures secure sealing to maintain freshness and prevent leaks.

  • 14 Capping Heads for high-speed capping.
  • Magnetic torque control for adjustable cap tightness.
  • Automatic cap sorting and feeding system.
  • Compatible with plastic screw caps and aluminum caps.
