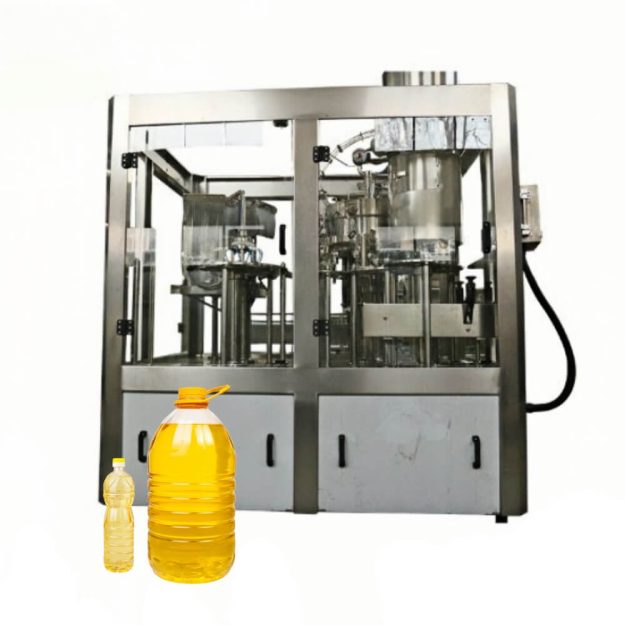

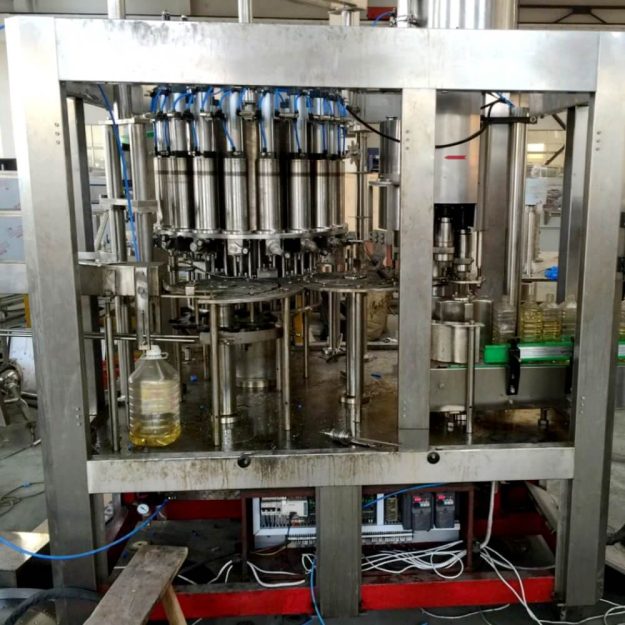

Gravity Type Oil Filling Machine
This automatic gravity filling machine is suitable for filling various liquids, viscous and non-viscous, corrosive liquids, etc. Mainly used in the plant oil, chemical, daily consumer goods, quantitative small package outfit industry. Using linear fill, electromechanical integration control, replacement for various types of products is very convenient. Unique design, superior performance, in line with the requirements of international machinery standards. Suitable for various filling processes, stable and reliable performance.
Specifications
| Model | 6/8/10/12/14/16 |
| Capacity | 800bph -3000bph |
| Suitable bottle height | H=170-320 Φ=50-110 (200~2500ml) |
| Bottle nec diameter | 20-40mm |
| Filling Range | 500-5000 ml |
| Air Source pressure | Atmospheric pressure |
| Air Consumption | 0.3cbm |
| Temp of filling | Normal tempreture |
| Method of filling | Normal pressure filler |
| Power | 3.5 kw |
| Overall dimension(mm) | 2500× 2200× 2300 |
| Weight( g) | 2500 kg |
Video
Description
- This machine has compact structure, flawless control system, and is convenient to operate with high grade automatism.
- All the parts contacting the media are made of high quality stainless steel, able to bear corrosion and easily rinsed.

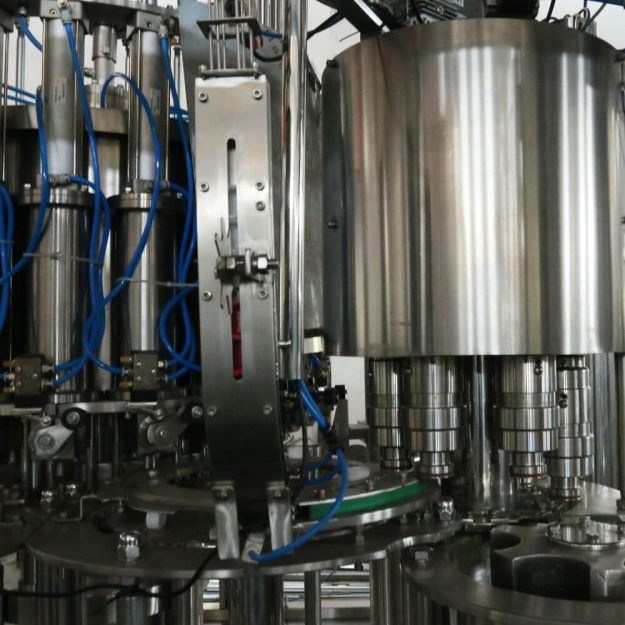

- Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling.

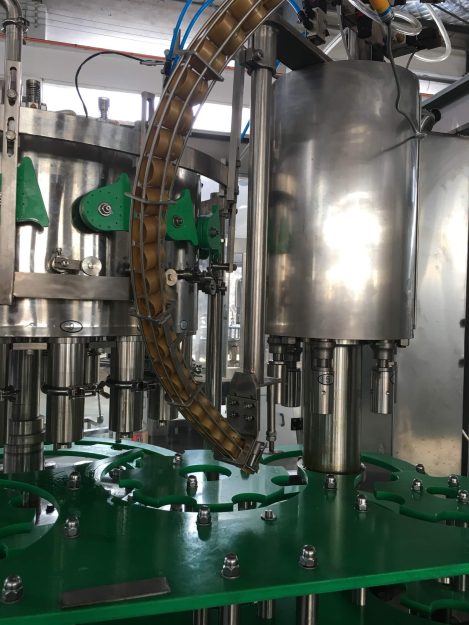

- The capping head has constant twisting movement, which ensures capping quality, without damaging caps.
- Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting.

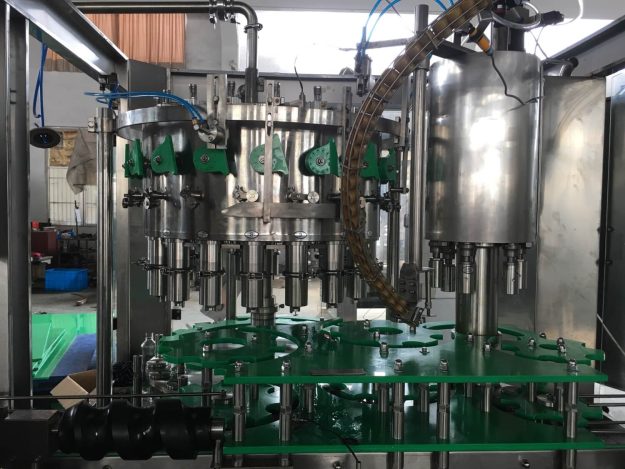

- Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation.
- There is flawless equipment for overload protecting, which can protect effectively machine and operator safety.
- This machine adopts an electromotor with transducer adjusting speed, Andis convenient to adjust productivity.
- All the main electric elements, transducer, photoelectric switch, near switch,and electric controlling valve are imported to ensure the high quality performance of the whole machine.
- The control system has functions for auto controlling of oil levels, checking and alarming for cap shortage, and team output counting.
- All pneumatic components elements are SMC Edible Oil Monobloc Filler Capper style. Filling Machinery are designed to fill and seal small bottle.
