Efficient Glass Bottle Water Filling Machine for High-Volume Production

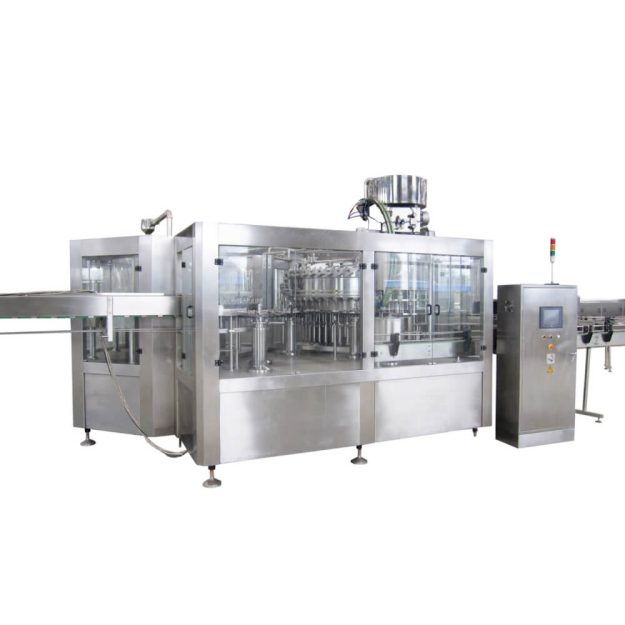

The glass bottle water filling machine is a vital piece of equipment for efficiently and hygienically filling water into glass bottles. This automated system combines rinsing, filling, and capping processes, ensuring precise filling with minimal waste. Ideal for beverage manufacturers, our machines are made from high-quality stainless steel, offering durability and easy cleaning to meet strict hygiene standards.
Specifications
| Model | CGF8/8/1 | CGF14/12/5 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 | CGF48/48/12 |
| Production Capacity:500ml(B/h) | 1000 | 5000 | 8000 | 10000 | 14000 | 20000 |
| Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard:(mm) | φ50-φ110 | |||||
| Filling Pressure:(Mpa) | 0.2-0.3 | |||||
| Installed Capacity:(L) | 3.13 | 3.84 | 3.84 | 3.84 | 5.6 | 7.3 |
| Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
| Overall Size:L×W×H(mm) | 2400×1670 ×2350 |
2470×1970 ×2350 |
2670×2160 ×2350 |
2865×2170 ×2350 |
3700×2570 ×2350 |
4500×3400 ×2400 |
| Total Weight:(kg) | 2500 | 3000 | 3500 | 4000 | 5000 | 6500 |
Video
Description

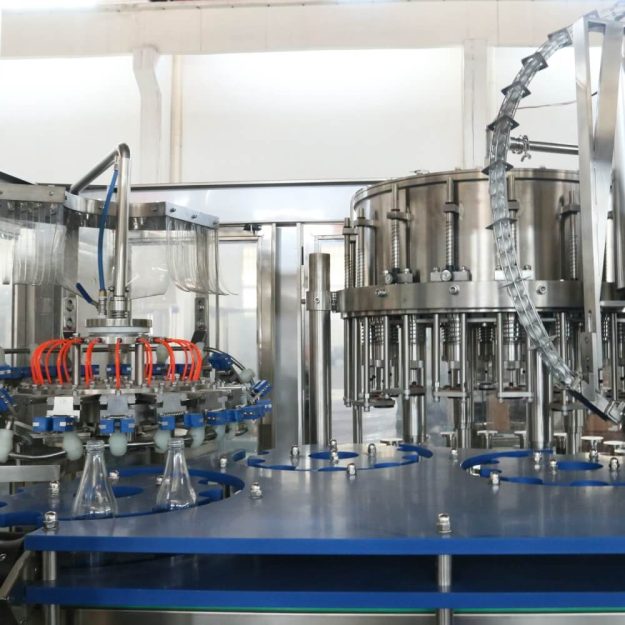

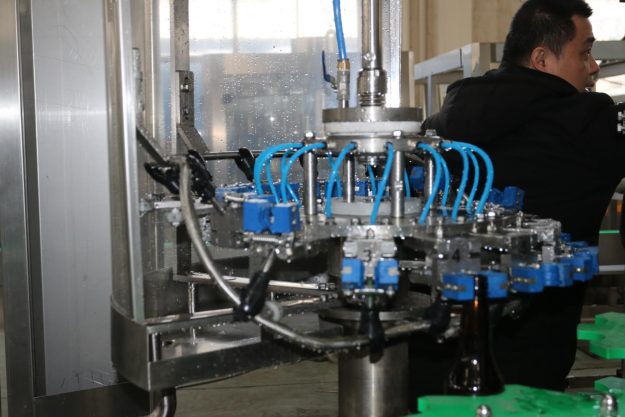

Washing Part
- Into the bottle way is a flat conveyor cooperated with a bottle feeding screw.
- All 304/316 stainless steel rinse heads, water spray style inject design, save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
- 304/316 stainless steel washing pump makes the machine more durable.

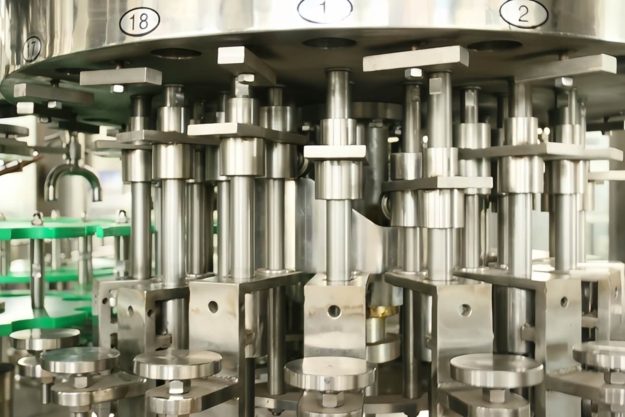

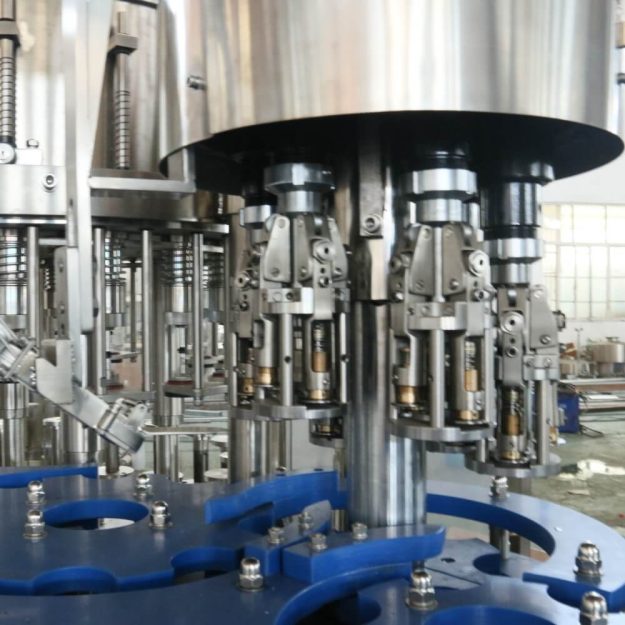

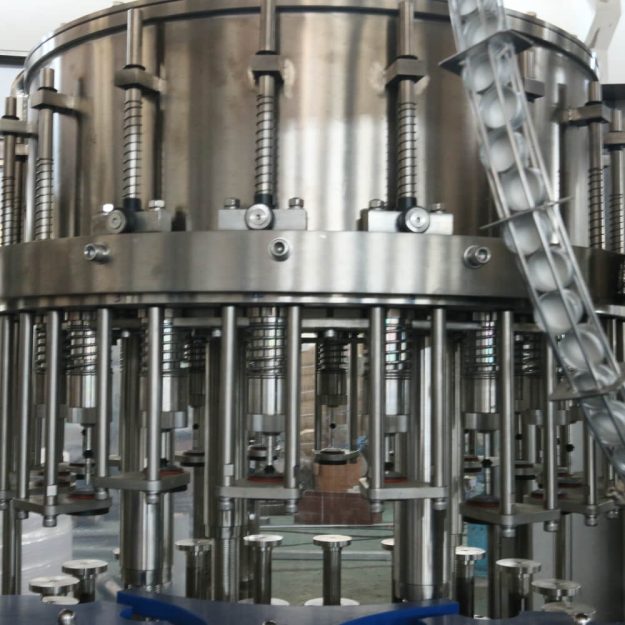

Filling Part
- 304/316 Stainless steel high-precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- The air-lifting mechanism makes the running more stable and smooth.

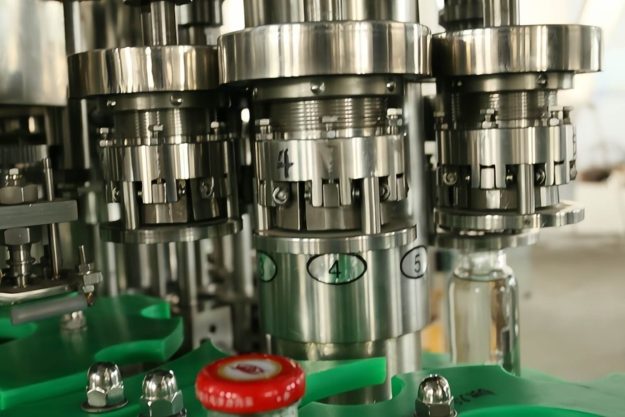

Capping Part
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- The capping effect is stable and reliable, with a Defective rate of ≤0.2%.
