Gravimetric Filling: Accurate and Efficient Product Dispensing
Gravimetric filling is a precise method used in packaging industries to dispense products by weight, ensuring accuracy and consistency. This process involves using highly sensitive scales to measure the weight of each product as it is filled, eliminating the need for manual volume measurements. Ideal for applications in food, pharmaceuticals, and chemicals, gravimetric filling improves efficiency, reduces waste, and enhances product quality control.
Specifications
| Number of working positions | filler 30, capper 6 |
| Capacity | 9,000BPH (1L); 4,800BPH (2L) |
| Applicable bottle diameter | 50~200mm, height 150~360mm |
| Material supply pressure | 0.03~0.08 MPa |
| Vacuum in filling tank | -50~80mbar |
| Air supply pressure | 0.6~0.7MPa |
| Air consumption | 0.5 M3/min |
| Main motor power | 2.2Kw |
| Power of cap unscrambler | 0.37Kw |
| Power of vacuum pump in filler | 1.5Kw |
| Power of vacuum pump for capping | 1.1Kw |
| Installed power of motor | 5.54Kw |
| Rated voltage | 380V, 50Hz, 3PH (customized) |
| Machine dimension | 2740mm×3310mm×2950mm (L×W×H) |
| Machine weight | 3200kg |
Video
Description

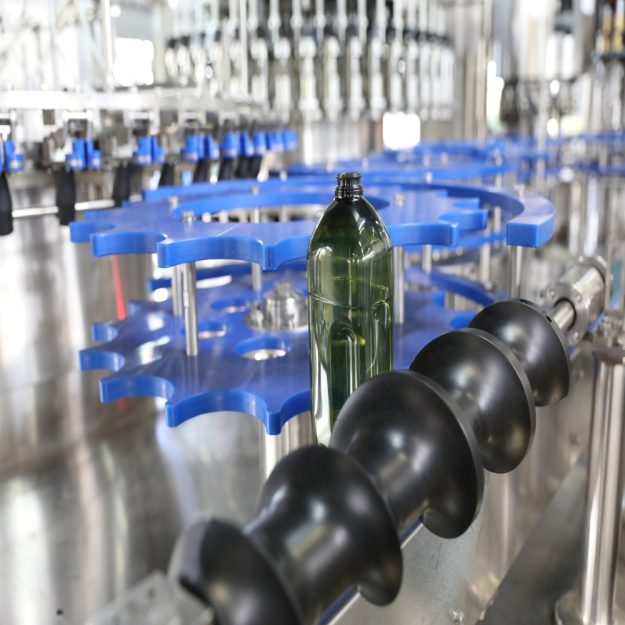

- Bottle infeed by a combination of air conveyor and infeed starwheel.
- Equipped with a bottle jam protection device.

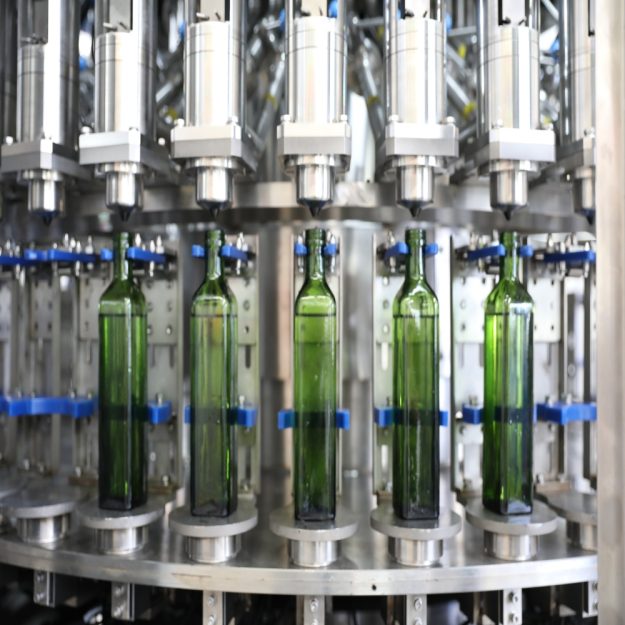

- Filling valve structure design is reasonable, fast flow, high precision. Parts and components used in all CNC machining centers and processing equipment. Improve the machining accuracy at the same time, to ensure the good exchange of parts. All filling valve seals with ozone-resistant, corrosion-resistant seals. All contact with the logistics of sanitary materials.

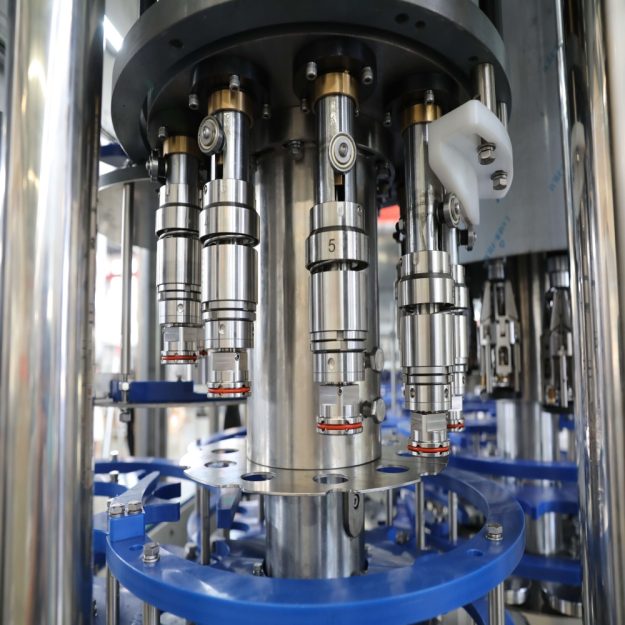

- Filling valve and bottle lifting mechanism sliding sleeve are made of German igus corrosion-free maintenance-free bearings.

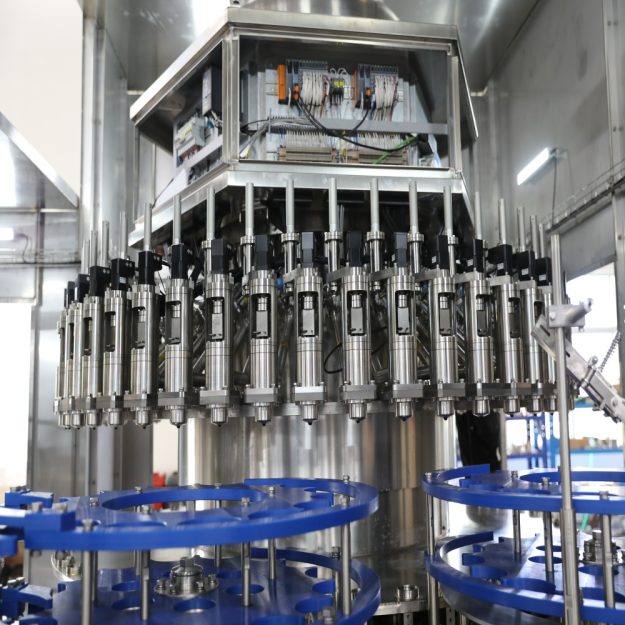

- Electrical servo drive instead of pneumatic cylinder for valve control
The capping cam is forged from 45 # high quality carbon steel and is cut and machined by the machining center. In order to improve the strength of the guide rail of the cam, after the corresponding heat treatment, the surface is blacked out.
