Automatic Grab Tape Case Packaging Machine for Cans – Efficient Can Packing Solution
The Automatic Grab Tape Case Packaging Machine for Cans is a highly efficient solution designed to automate the process of packing cans into cases. Ideal for high-volume production environments, this machine uses advanced technology to securely and quickly grab and pack cans into various case sizes, ensuring consistent packaging quality. With features like adjustable settings and reliable performance, it’s the perfect choice for manufacturers looking to streamline their packaging process and boost operational efficiency.
Specifications
| Power Supply | 3PH 220V/380V 50/60Hz |
| Machine Dimension (L*W*H) | 1700*1950*2060mm |
| Height of Work Table | Feed-in worktable 850mm; out 650mm |
| Packing Size | 500*500*200mm |
| Packing Weight | 0-20kg |
| Capacity | 20 cases/h |
| Power | 4 KW |
| Air Pressure | 6-8kg/cm² |
| Packing Material | Carton |
| Working Noise | <85 decibel |
Video
Description

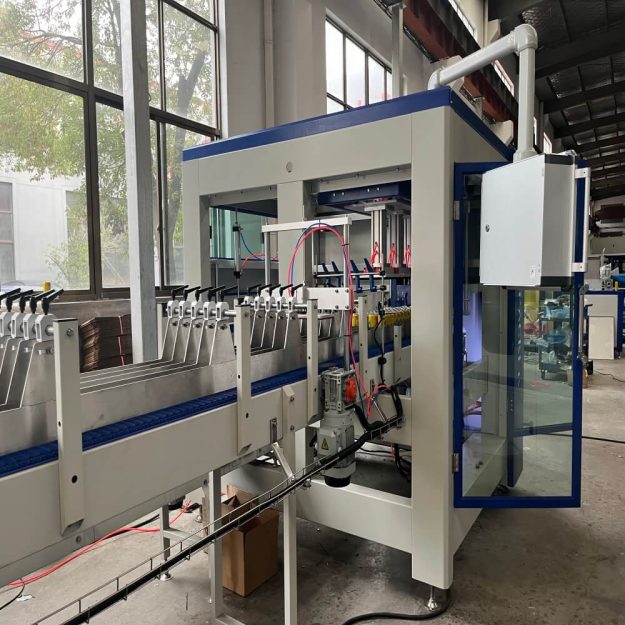

Case Erector
Features:
Advanced technology manufacturing, and advanced parts, electrical components and pneumatic components.
The machine is with a vertical storage, so that you can add carton at any time, be sure the machine keeps running continuously.
It is suitable for one kind carton size at one time, when you need to change a different carton box, it takes about 1-2 minutes to switch.
The machines are reasonable design, synchronous absorb forming, folding bottom and bottom sealing.
Its body and part performance precisely and durably. Which has operation process with no vibration, operation stability, long life span, high efficiency.
Equipped with blade protection device, avoid operation when its accidentally stabbed.
It can be used separately, or connect the production line together then work in group.

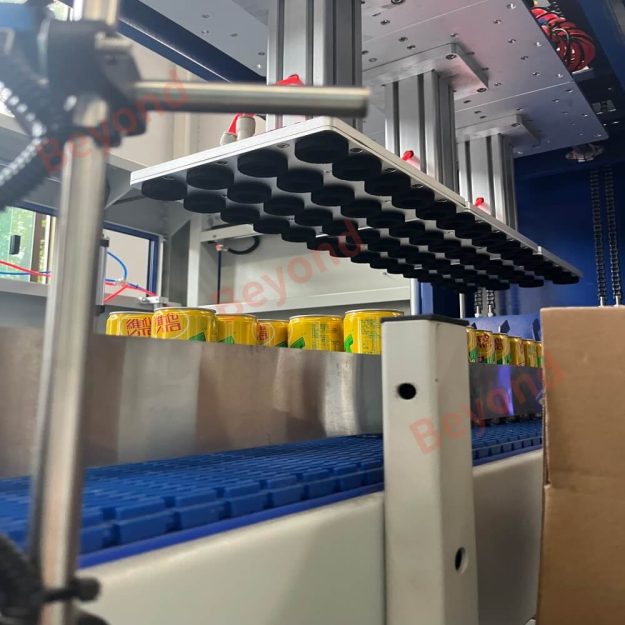

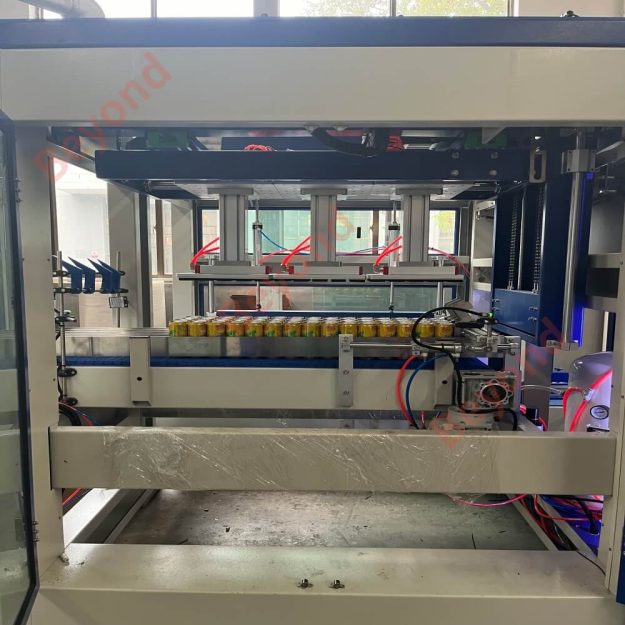

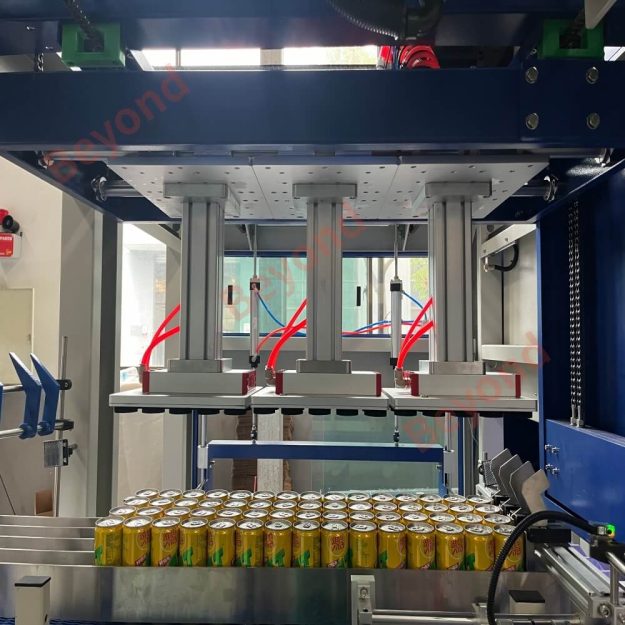

Case Packing Machine
Key Features
- Advanced Grabbing Technology: This feature securely grips can to prevent damage or misplacement during packing.
- Adjustable Settings: The machine easily adapts to various can sizes and case configurations.
- User-Friendly Interface: Simplifies operation and monitoring with intuitive controls and real-time system feedback.
- Compact Design: The space-saving structure fits seamlessly into existing production lines.
Case Packing Machine
Key Features
- Advanced Grabbing Technology: This feature securely grips can to prevent damage or misplacement during packing.
- Adjustable Settings: The machine easily adapts to various can sizes and case configurations.

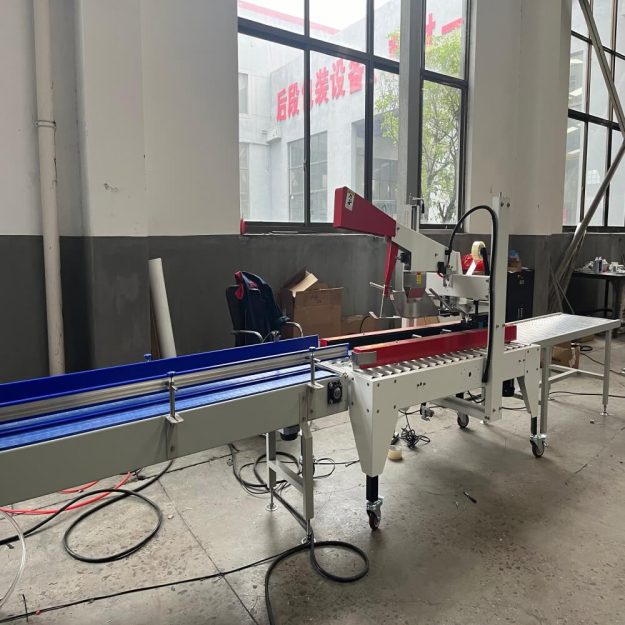

Automatic Case tapper
Automatic upper flap-folding
Easy operation
New type of tape head
Both side compression rollers for tight sealing
Top mast with cushion for smooth sealing
Tape overlap length 60±5mm
Two-side belt driven with universal bearing: Precise, Low noise, durable parts and belt
Caster with brake
Equipped with control valve type, different size carton no manual adjustment, especially suitable for production line
