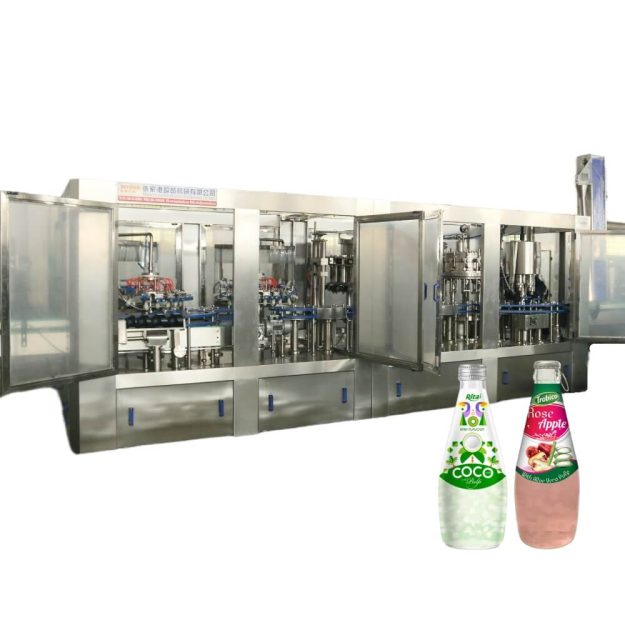

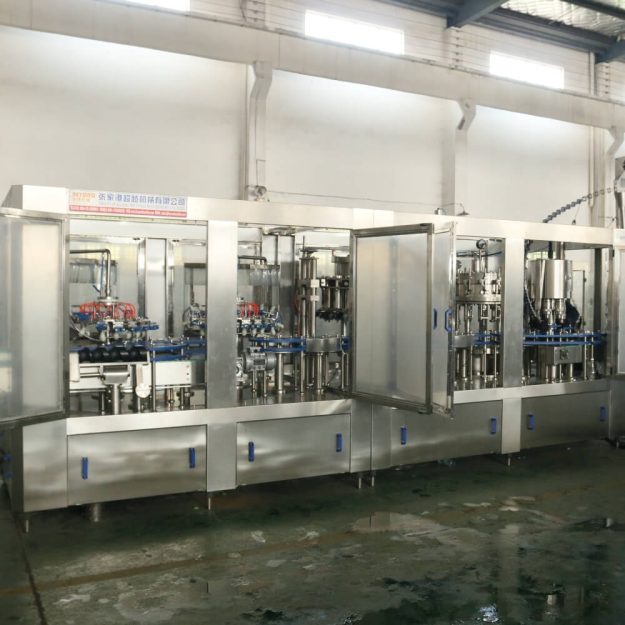

Automatic Glass Bottle 4-In-1 Fruit Pulp Juice Filling Machine
The 4-in-1 juice and pulp filling machine is a hot filling machine that integrates rinsing, pulp filling, juice filling, and capping and the capacity could be up to 1000bph-20000bph. It is suitable for juice-containing particles. The juice and pulp filling equipment adopts the advanced micro-negative pressure gravity filling principle. The filling is fast, stable and accurate. It is equipped with a complete material reflux system, which can also realize independent air return during reflux without contact with the material, reducing secondary pollution and oxidation of the material.
Specifications
capacity(640ml/330ml bottle): | 3000-4000BPH 750ml |
Washing valve heads: | 18 |
Washing valve heads: | 18 |
filling valve heads: | 18 |
filling valve flux: | 140~160ml/s |
capping heads: | 6 |
capping force: | 0.6~2.8Nm(adjustable) |
main motor power: | 7.8KW |
compressed air consumption: | 0.7Nm3/h(0.6MPa) |
Weight: | 4000Kg |
Dimensions | 3600*2200*2200mm |
Video
Description
![](https://www.beyondmachine.com/wp-content/uploads/2024/07/juice-pulp-filling-machine-detailed-2-1024x683.jpg)
Bottle Washing Part
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding star-wheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the star-wheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.
![](https://www.beyondmachine.com/wp-content/uploads/2024/07/pulp-juice-filling-machine-detailed-1024x683.jpg)

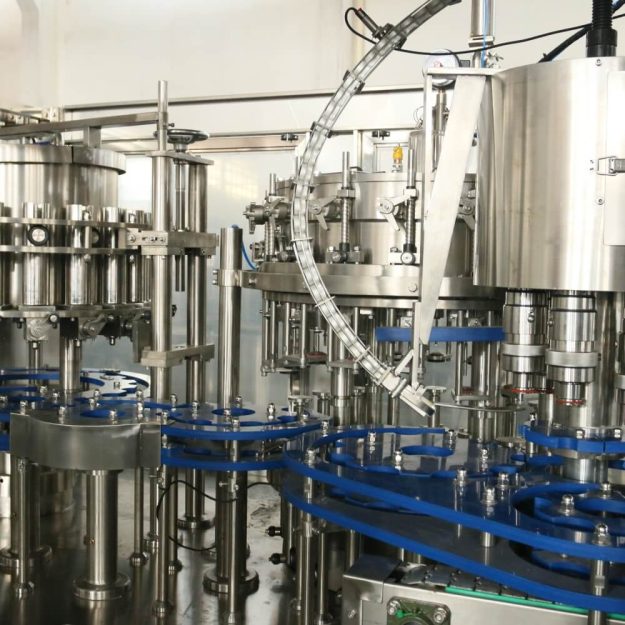

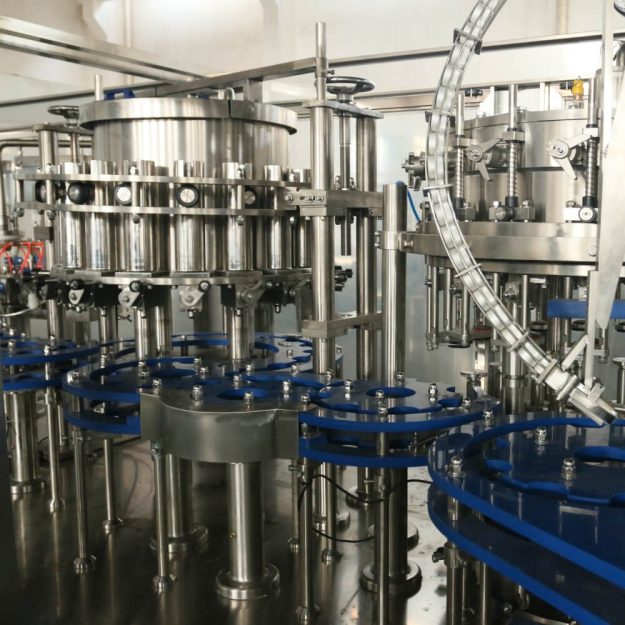

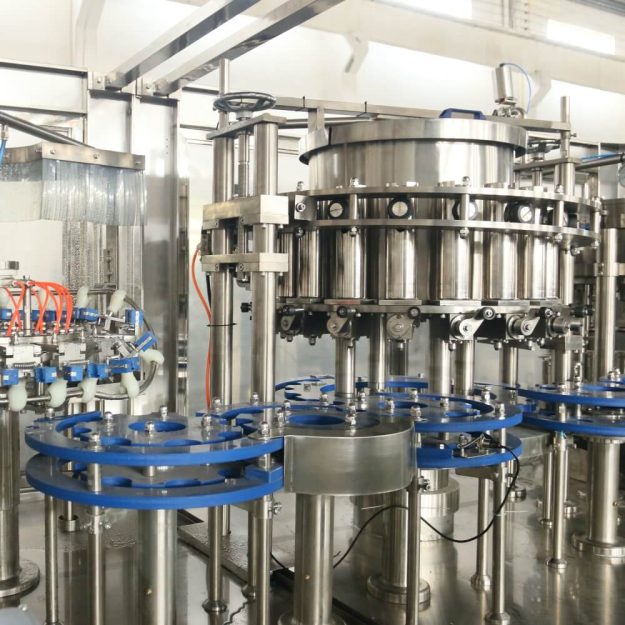

Pulp&Liquid Filling Part
Filling machine part consist of 18 head plunger filling valves and 18 head carbonated filling valves. Fast, stable, accurate. The beverage feedback system is carefully designed, and the gas can be given separately, not contact with material, reducing the secondary pollution and oxidation of materials.
Filling machine adopt German technology, produce by ourselves obey to pressure filling principle.
![](https://www.beyondmachine.com/wp-content/uploads/2024/07/pulp-juice-filling-machine-gallery-2.jpg)
Bottle Capping Part:
Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. There is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspects by sensor, capping machine control the cap conveyor. The machine will stop when no caps
