Automatic 3-in-1 Plastic Bottle Juice Filling Machine
The series equipment is used in the hot filling and sealing of green tea, black tea, wulong tea, and fruit juice drinks.
Specifications
Model: | CGF12/12/6 | CGF18/18/6 | CGF24/24/6 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
Production Capacity: 500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable Cap Standard: (mm) | φ 50-φ 110 | |||||
Filling Pressure: (Mpa) | 0.2-0.3 | |||||
Installed Capacity: (L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
Overall Size: L× W× H(mm) | 2400× 1670 × 2350 | 2470× 1970 × 2350 | 2865× 2170 × 2350 | 3700× 2570 × 2350 | 3800× 2950 × 2400 | 4500× 3400 × 2400 |
Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
Video
![YouTube video](https://i.ytimg.com/vi/dUWrLjwZ-LA/hqdefault.jpg)
Description
![](https://www.beyondmachine.com/wp-content/uploads/2024/03/plastic-bottle-juice-filling-machine-details-1-1024x768.jpg)

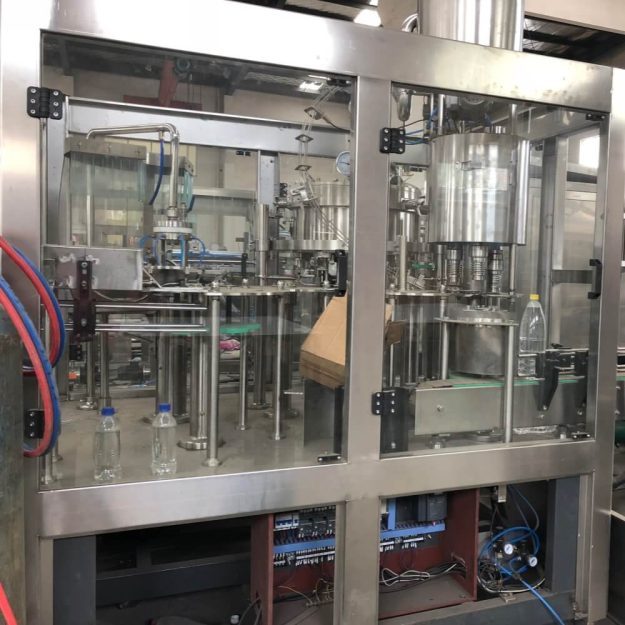

- The machine is mainly used in the beverage-filling operations. Suitable for non-carbonated drink-filling machines, The three functions of bottle wash, fill and seal are composed in one body of the machine.
- The whole process is automatic. The machine is used in filling juices, mineral water, and purified water in bottles made of polyester and plastics.
- The machine can also be used in hot filling if it is installed with a temperature-controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
![](https://www.beyondmachine.com/wp-content/uploads/2024/03/plastic-bottle-juice-filling-machine-details-2-1024x681.jpg)
- It’s osculant the drink material parts adopt the SUS304 stainless steel, The machine’s main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element, etc are adopt famous international manufacturer products
![](https://www.beyondmachine.com/wp-content/uploads/2024/03/plastic-bottle-juice-filling-machine-details-3-1024x1024.jpg)

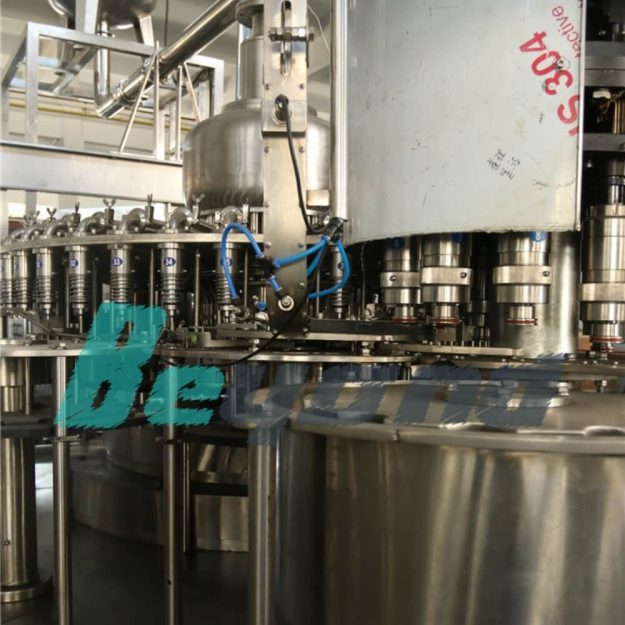

- The filling operation is faster and more stable because the micro-pressure filling operation of the new type is adopted.
- The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speeds and coordinate with the transducer of the main machine to make the operations of moving the bottle forward steadily and reliably.
- It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On this basis, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy, and such like materials. The aluminum theft-proof cap and plastic cap can be adopted.
