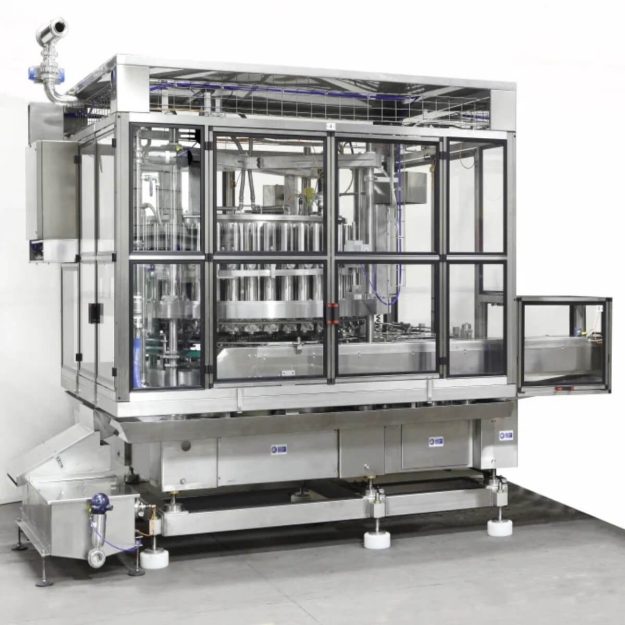

Automatic 2-in-1 Oil Piston Rotary Filling Machine
Product details
Rotary valve piston fillers are suitable for filling liquids (with or without lumps) or viscous products such as ketchup, jam, marmalade, juices and purees, vegetable or mineral oils into glass, metal or plastic containers.

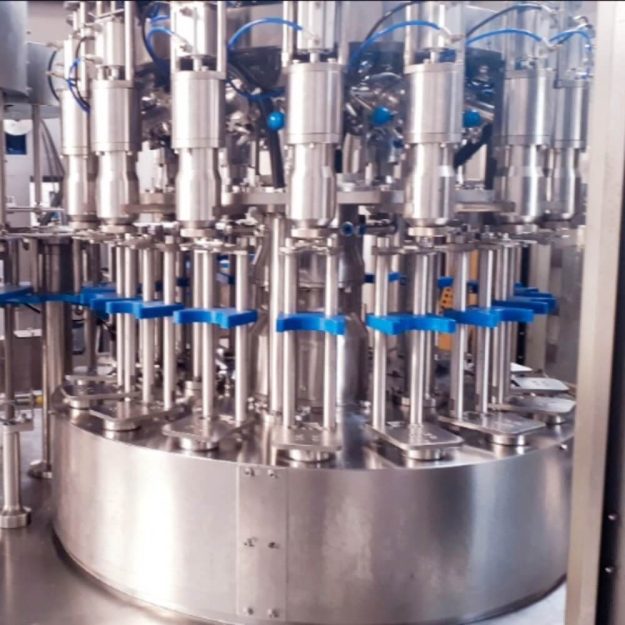

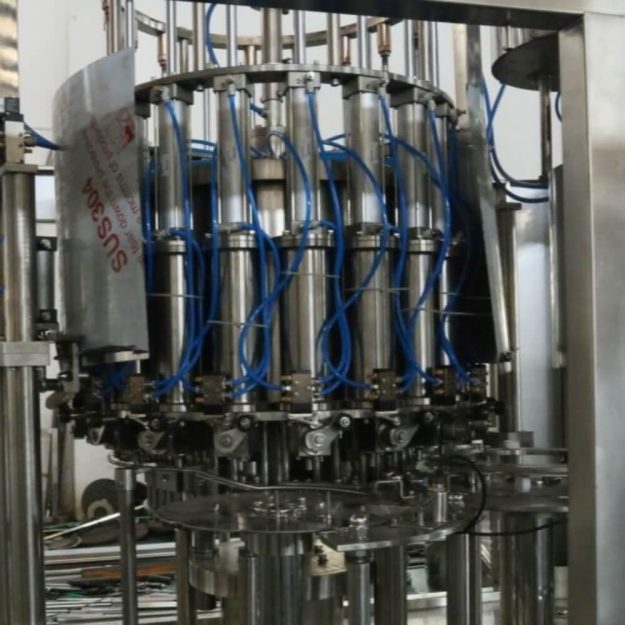

The active piston ensures the filling process during the machine’s operating cycle. The product volume can be adjusted by changing the piston stroke, even while the machine is running.
Specifications
| Model | BY6-BY30 |
| Capacity | 1200-20000 bottles/hour |
| Filling Nozzle | 6-30 head |
| Filling Range | 500-5000 ml |
| Voltage | AC220V/380V 50-60Hz (Special customizable) |
| Installed Power | 1.5-7.0 Kw |
| Air source | 0.6-0.8MPa |
| Suitable bottle height | Customizable |
Video
Description
Working principle

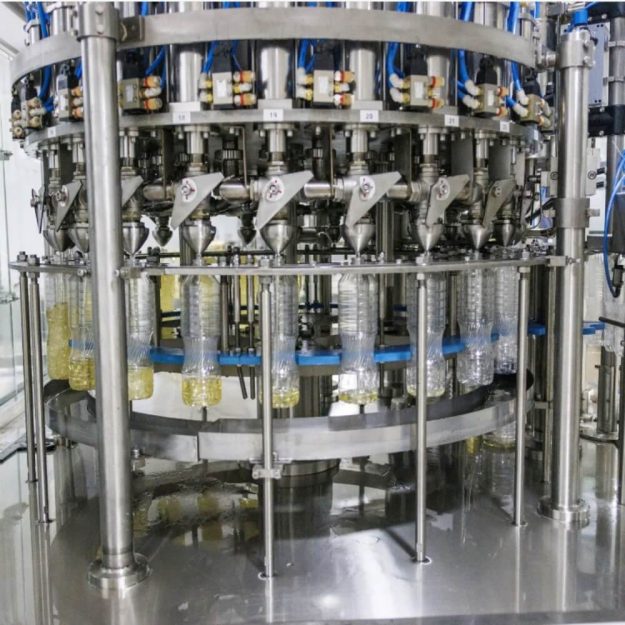

1) Filling: The filling valve is opened to form a passage between the bottle and the liquid cylinder. The material enters the bottle through this passage. At the same time, the air in the bottle flows back to the cylinder through the return air pipe at the same speed. Until the material in the bottle rises and overflows the return air pipe to seal the material and continue to flow out.
2) Valve closing: After the bottle is left to stand for a certain period of time after filling, the liquid valve is closed to cut off the passage between the liquid cylinder and the bottle.
3) Exhaust: The exhaust valve is opened to form a passage between the bottle and the atmosphere. The pressure in the bottle is released through this passage. The post-pressure release process is carried out until the bottle is separated from the filling component.
Performance characteristics
1) Liquid level filling: Negative pressure filling is adopted to effectively avoid the easy foaming of the filling liquid.
2) Long life: The filling valve has a precise structure, few seals, and is reliable and durable.
3) Wall spray filling: During filling, the liquid flows down along the inner wall of the container, which effectively prevents the foaming caused by the liquid impacting the bottom of the bottle.
4) Less bottle damage: The elastic bottle support structure is adopted, and the bottle support is gentle during filling, which effectively reduces bottle damage.
5) No bottle, no filling: No bottle or bottle with defective bottle mouth will not be filled, thereby improving the quality of the product after filling.
6) Maintenance: The filling valve has a simple structure and is easy to disassemble and clean.
Capping part

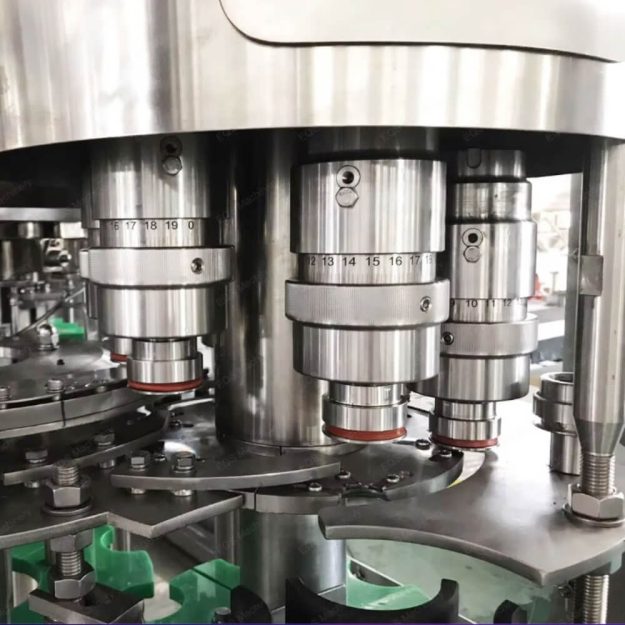

1. Placement and capping system, electromagnetic capping head, with unloading function, to ensure small collision of bottles during capping
2. All 304/316 stainless steel structure
3. No bottle, no cap
4. Automatically stop when there is no bottle
5. Stable and reliable sealing effect, unqualified rate ≤0.2%
