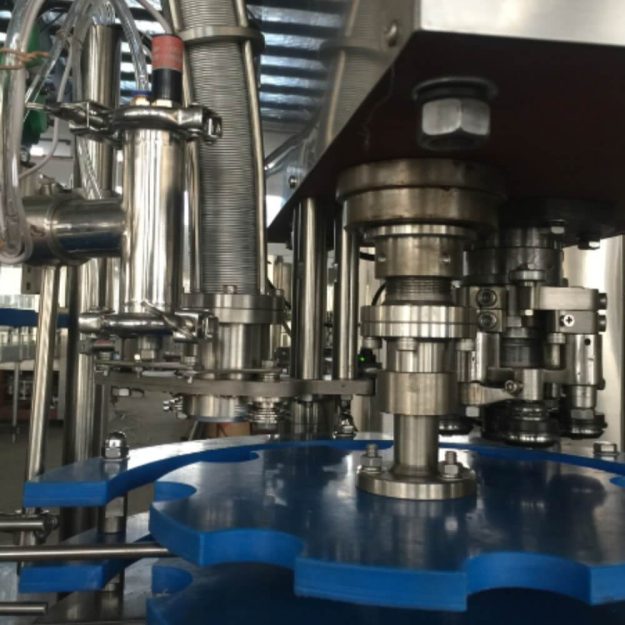

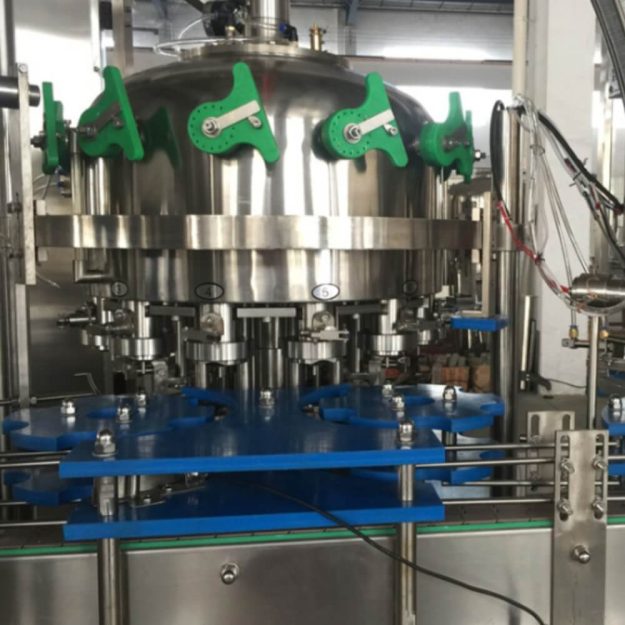

Automatic 2-in-1 Juice Can Filling Machine
1. This machine is mainly used for beverage operations: This machine combines the two-in-one functions of filling and capping
2. The whole process is automated, suitable for filling juice and mineral water in two-piece cans and three-piece tinplate cans. With the temperature control device, hot filling can also be performed.
3. The adjustment of each part to adapt to the bottle shape is achieved by turning the handle, which is easy, simple and fast.
4. Filling method: The new type of micro-pressure filling is adopted to make the filling speed faster and more stable, so compared with the machines of the same specifications, this machine has higher output and greater benefits.
Specifications
Capacity: |
2000cph |
filling valve: |
12units |
seaming head: |
1units |
Can diameter |
Φ65mm |
Can height |
122~160mm |
Power: |
6.5KW |
Dimensions: |
L×W×H=2400×2000×2200(mm) |
Weight: |
2000Kg |
Video
![YouTube video](https://i.ytimg.com/vi/dpcr6NlwlXY/hqdefault.jpg)
Description
![](https://www.beyondmachine.com/wp-content/uploads/2024/06/juice-can-filling-machine-detailed-1024x768.jpg)
(1) This machine has a compact structure, a perfect control system, is easy to operate, and has a high degree of automation;
(2) To change the bottle shape, you only need to replace the star wheel of the capping part and the arc guide plate;
(3) All parts in contact with the material are made of high-quality stainless steel, with no process dead corners and easy to clean;
(4) It adopts a high-speed filling valve, with accurate liquid level and no liquid loss, ensuring the filling process requirements;
(5) The capping head adopts a magnetic constant torque device to ensure the capping quality and will not damage the bottle cap;
(6) It adopts an efficient capping system with perfect automatic control and protection devices;
(7) It is equipped with a perfect overload protection device to effectively protect the safety of the equipment and the operator;
(8) The control system has functions such as production speed control, cap missing detection, bottle jamming automatic stop and output counting;
(9) The main electrical components and pneumatic components are all world-famous brand products;
(10) The whole machine operation adopts advanced touch screen control, which can realize human-computer dialogue operation.
