Automatic 15000BPH 4-In-1 Fruit Pulp Juice Rinsing Filling Capping Machine

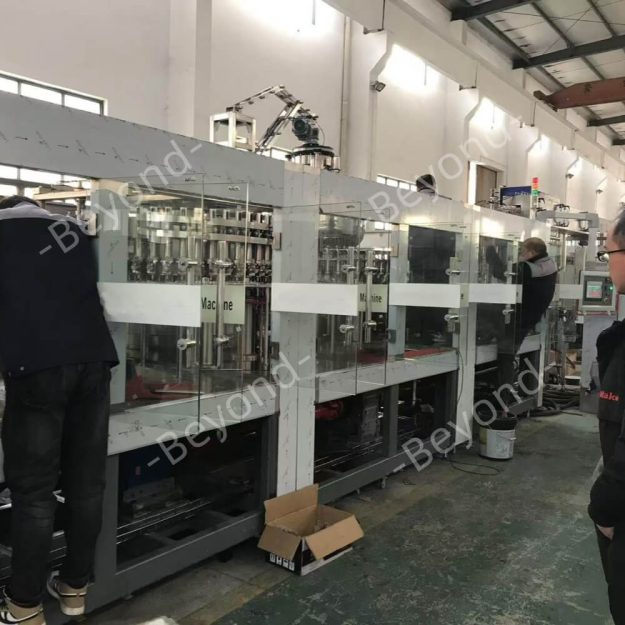

Our Automatic 15000BPH 4-In-1 Fruit Pulp Juice Rinsing, Filling & Capping Machine is designed for high-speed production, offering two distinct filling stages: one for fruit pulp and another for juice. With a capacity of 15,000 bottles per hour, this machine ensures precise filling of both pulp and juice, thorough bottle rinsing, and secure capping, all in a compact and efficient unit. Ideal for large-scale fruit juice production, it maintains consistent product quality while reducing operational costs and enhancing efficiency.
Specifications
| Items | Details |
|---|---|
| Production Capacity | 15000 BPH |
| Washing Head | 50 & 40 |
| Pulp Filling Head | 32 |
| Juice Filling Head | 40 |
| Sealing Head | 10 |
| Applicable Bottle Volume | 200ML – 2250ML |
| Suitable Bottle Height | H = 170 – 320mm; Φ = 50 – 100mm |
| Bottle Neck Diameter | 20 – 40mm |
| Bottle Washing Pressure | 2 – 3 MPa |
| Filling Temperature | Hot Filling |
| Filling Accuracy (Liquid Level) | +/- 1mm |
| Power | 7.5 kW |
| Power Supply | 380V – 50Hz / 220V – 50Hz |
| Machine Size (mm) | 5650 × 2300 × 2400 mm |
| Weight | 8500 kg |
Video
Description
Bottle Washing Part
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding star-wheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the star-wheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.

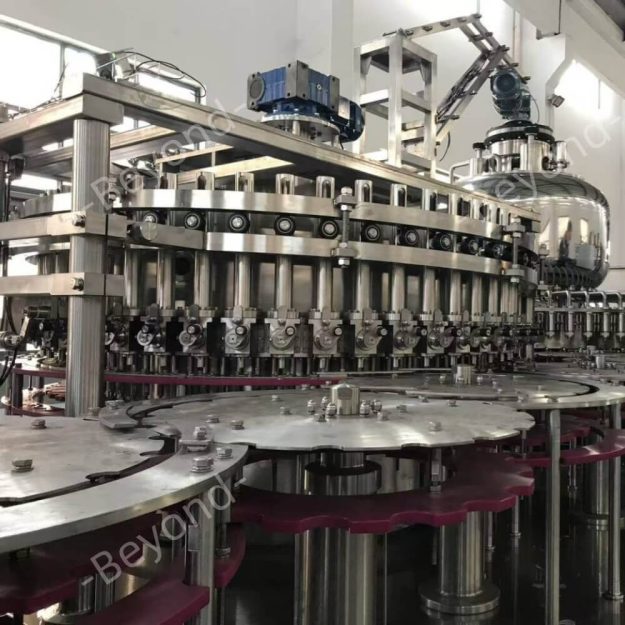

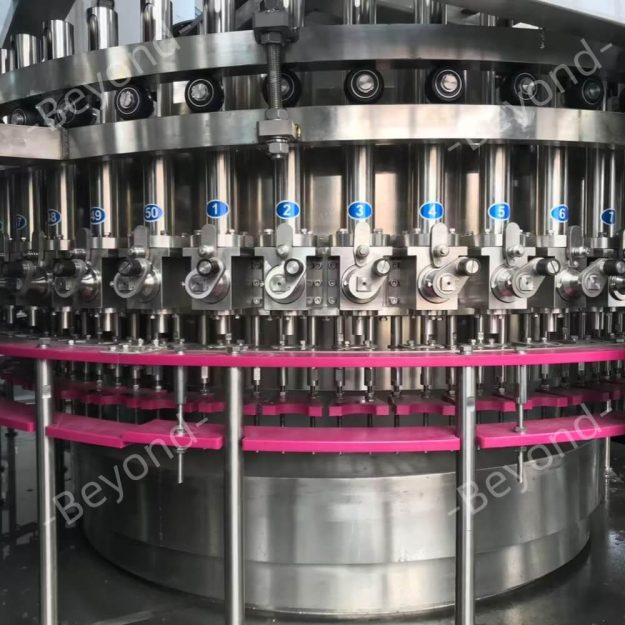

Pulp&Liquid Filling Part
Filling machine part consist of 40 head plunger filling valves and 32 head juice filling valves. Fast, stable, accurate. The beverage feedback system is carefully designed, and the gas can be given separately, not contact with material, reducing the secondary pollution and oxidation of materials.
Filling machine adopt German technology, produce by ourselves obey to pressure filling principle.

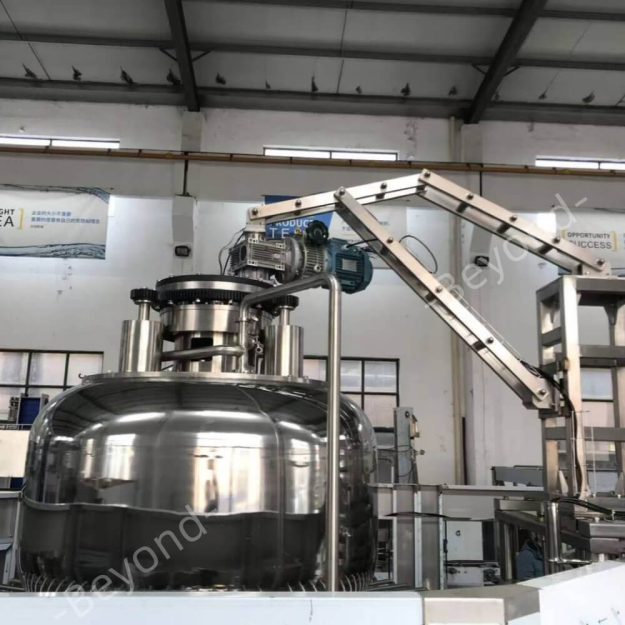

Bottle Capping Part:
Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. There is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspects by sensor, capping machine control the cap conveyor. The machine will stop when no caps
