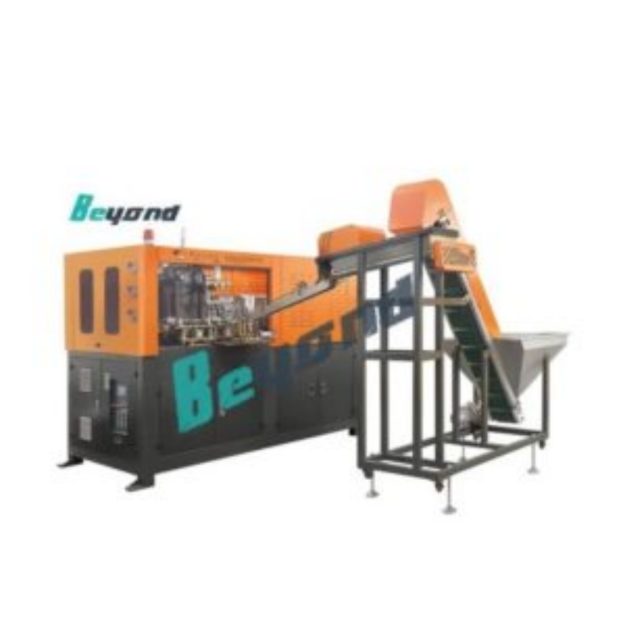

8 Cavity Automatic PET Bottle Blowing Machine
The servo high-speed bottle-blowing machine is used for PET water bottles, hot filling bottles, steam drink bottles, edible oil bottles, pesticide bottles, and so on. Servo high-speed bottle blowing machine adopts a servo control system, which has the characteristics of a stable and reliable structure, is fast and stable, easy to maintain, convenient and convenient for mold, and meets the need for continuous production online. Touch screen control and temperature adjustment make it easy to blow different bottle type temperature regulation.
Specifications
| container volume(ml) | 1500 |
| Electrical system(V) | 380v/50-60Hz |
| Cavity | 1 |
| Max diameter(mm) | 93 |
| clamping stroke(mm) | 120 |
| mold thickness(mm) | 160 |
| stretching stroke(mm) | 450 |
| theoretical output(pcs) | 2400 |
| Weight (KGS) | 2000 |
| The total measure area | 2720*3400mm |
| Main machine size | 2720*1440*2060mm |
| Loading machine size | 1700*1100*2400mm |
| Power(kw) | 50 |
| Use power(kw) | 20 |
Description
Characteristics of edible oil bottle straight line blowing machine:
1. Highly automated;
2. Stable cylinder heating system and efficient blowing system;
3. High efficiency and high production;
4. Environmental protection, no pollution;
5. Energy-efficient and energy-saving;
6. Edible oil bottle straight line bottle blowing machine maintenance convenience, safe operation, low noise.
