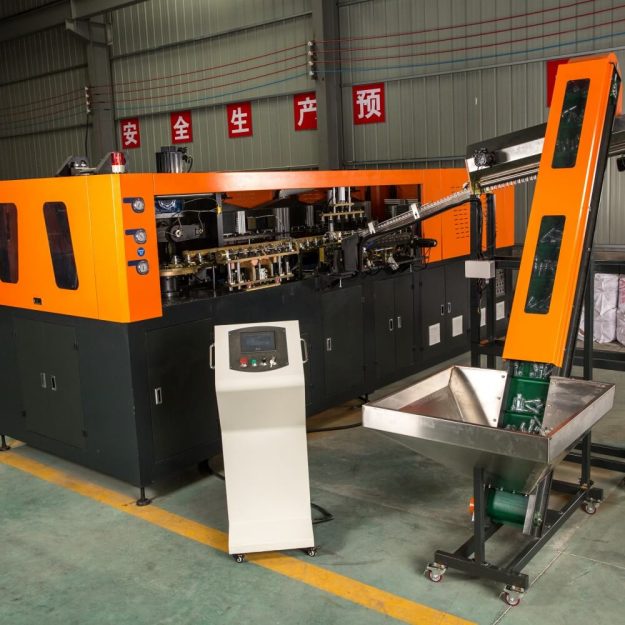

6 Cavity Automatic PET Bottle Blow Moulding Machine
The servo high-speed bottle-blowing machine is used for PET water bottles, hot filling bottles, steam drink bottles, edible oil bottles, pesticide bottles, and so on. Servo high-speed bottle blowing machine adopts a servo control system, which has the characteristics of a stable and reliable structure, is fast and stable, easy to maintain, convenient and convenient for mold, and meets the need for continuous production online. Touch screen control and temperature adjustment make it easy to blow different bottle type temperature regulation.
Specifications
| container volume(ml) | 1500 |
| Electrical system(V) | 380v/50-60Hz |
| Cavity | 1 |
| Max diameter(mm) | 93 |
| clamping stroke(mm) | 120 |
| mold thickness(mm) | 160 |
| stretching stroke(mm) | 450 |
| theoretical output(pcs) | 2400 |
| Weight (KGS) | 2000 |
| The total measure area | 2720*3400mm |
| Main machine size | 2720*1440*2060mm |
| Loading machine size | 1700*1100*2400mm |
| Power(kw) | 50 |
| Use power(kw) | 20 |
Video
Description
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
