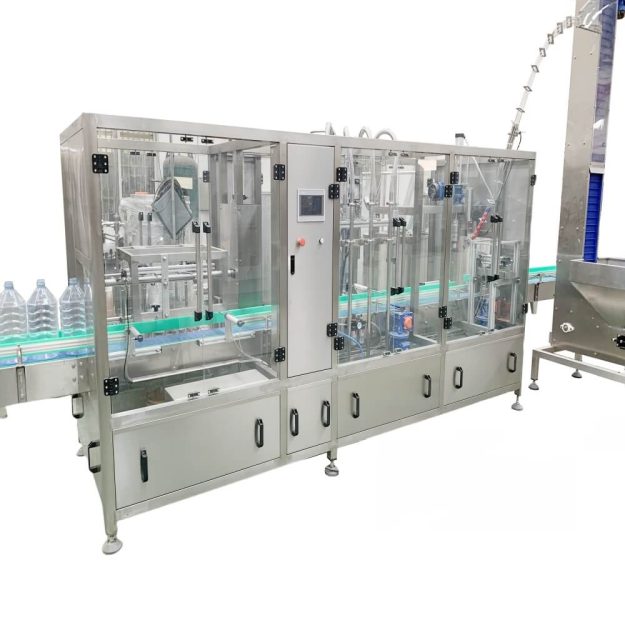

4-4-1 Bottle Washing, Filling, and Capping Linear Filling Machine for Water Bottling
The 4-4-1 bottle washing, filling, and capping linear filling machine is an ideal solution for high-volume water bottling operations. This all-in-one system efficiently integrates the essential processes of bottle washing, liquid filling, and capping, ensuring high standards of sanitation, accuracy, and speed. Designed to meet the demands of the liquid water industry, the 4-4-1 machine offers consistent performance, reducing downtime and increasing production capacity. With precise filling and secure capping, it ensures the safe packaging of bottled water, making it a reliable choice for beverage manufacturers.
Specifications
| Technical Parameters | |
|---|---|
| Model | CGF4-4-1 |
| Flushing Head | 4 |
| Filling Head | 4 |
| Capping Machine | 1 |
| Output | 600 BPH @ 10,000 ML |
| Air Source Pressure | 0.5 – 0.6 MPa |
| Re-evaluation Pressure | 0.2 – 0.3 MPa |
| Filling Method | Normal Pressure Filling |
| Power | 380V / 50Hz, 4.6 KW |
| Weight | 200 Kg |
| Dimensions | 4000 x 1800 x 1400 mm |
Video
Description

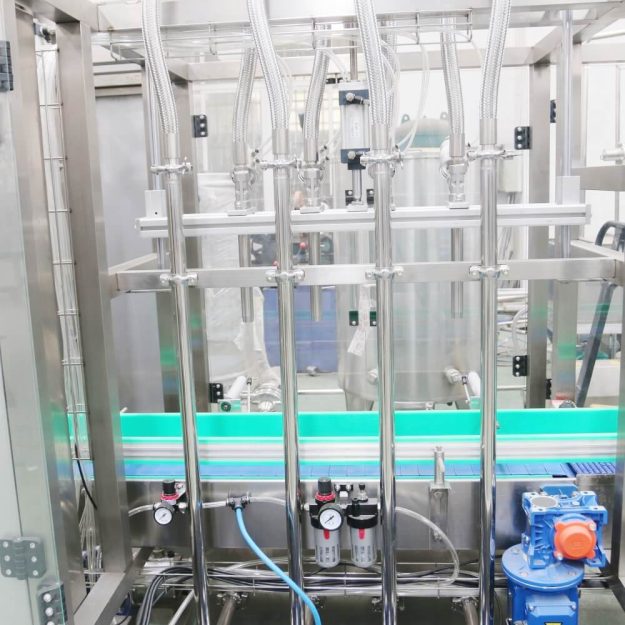

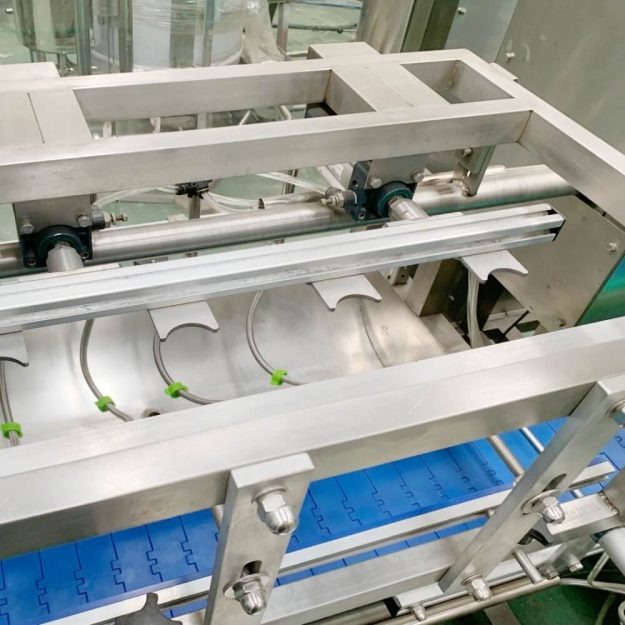

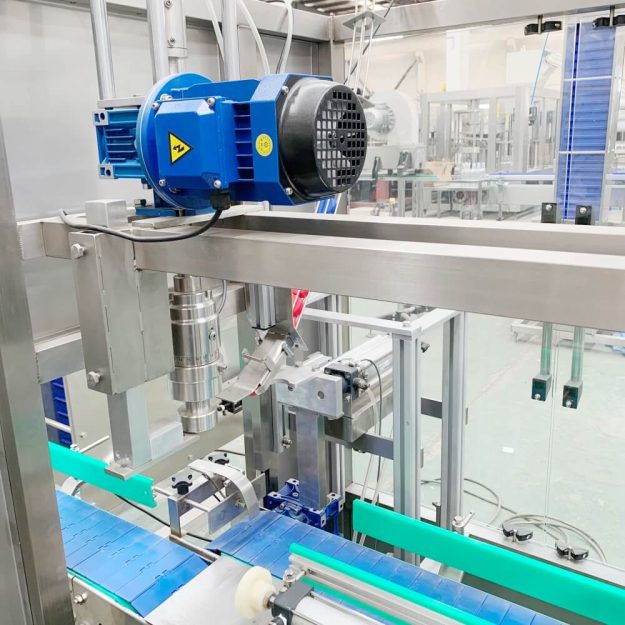

The 4-4-1 bottle washing, filling, and capping linear filling machine is engineered for seamless integration of essential tasks in the water bottling process. It begins with an advanced bottle washing system that uses high-pressure jets to thoroughly clean bottles, ensuring they are free from contaminants before filling. Once cleaned, the bottles are automatically aligned and filled with liquid water, achieving precise volume control for each bottle. The final step involves capping, where the system securely seals each bottle with a tight-fitting cap, preventing leaks and ensuring product freshness. With a focus on automation, the 4-4-1 machine significantly reduces manual labor, minimizes the risk of human error, and maintains a consistent, high-quality production line, making it an ideal choice for medium to large-scale water bottling operations.

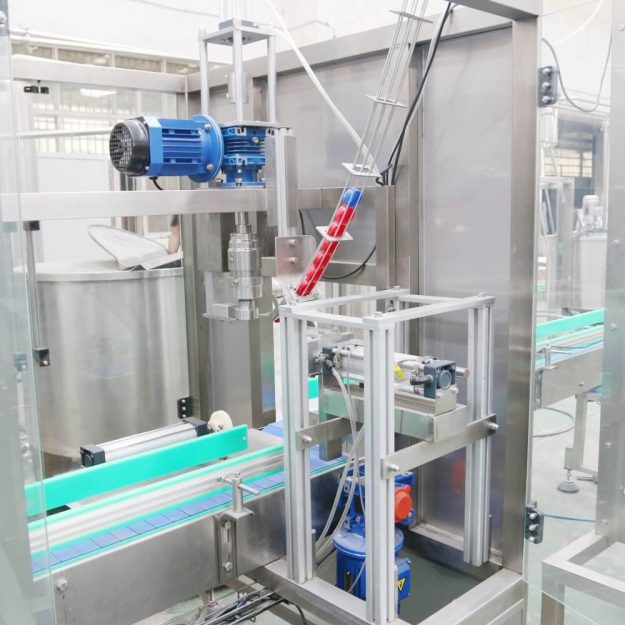

The automatic cap elevator is an essential component of the 4-4-1 bottle washing, filling, and capping system, designed to efficiently transport and position caps for the capping process. This automated system eliminates the need for manual cap handling, reducing labor costs and improving operational efficiency. The cap elevator uses a conveyor mechanism to lift and feed caps from a storage area to the capping station in a steady, reliable flow. It ensures that caps are aligned correctly and delivered to the capping machine with precision, preventing jams and ensuring smooth, uninterrupted production. By automating the cap supply process, the cap elevator enhances overall system reliability, and minimizes downtime, making it a crucial feature for high-volume water bottling lines.
