In a liquid filling production line, cleaning plays a crucial role in maintaining product quality, preventing cross-contamination, and optimizing production efficiency. This becomes even more critical when switching between different liquid categories, where the cleaning system must operate quickly and efficiently. A well-designed CIP (Cleaning In Place) system is essential in such scenarios, offering a streamlined approach to cleaning without disassembling equipment. In this post, we’ll focus on the CIP cleaning system and the cleaning in-place procedure, exploring their benefits, key usage tips, and important considerations for manual cleaning. With these practical solutions, you can ensure that your filling equipment is cleaned effectively and safely, minimizing downtime and maintaining consistent quality between production runs.
What is a CIP System?
CIP (Cleaning In Place) is a technology that allows cleaning without disassembling equipment. It uses a series of automated processes to circulate cleaning fluids (such as water, cleaning agents, etc.) through the filling machine’s internal components, ensuring that no contamination is left behind and all parts are thoroughly cleaned. CIP systems are commonly used in industries like food, beverage, and pharmaceuticals, where frequent changes in liquid categories or a variety of different products are produced.
Benefits of CIP systems include:
- No Need for Equipment Disassembly: Reduces downtime and increases production efficiency.
- Thorough and Even Cleaning: Ensures that all parts are cleaned, avoiding any hard-to-reach areas where contamination could linger.
- Reduced Human Error: Operators only need to monitor the process, reducing the risk of mistakes during cleaning.
Automatic CIP vs Semi-Automatic CIP: What’s the Difference?
Choosing the right CIP system can significantly improve cleaning efficiency. There are clear differences between automatic CIP and semi-automatic CIP systems in terms of cleaning effectiveness and ease of operation. Here’s a quick comparison:

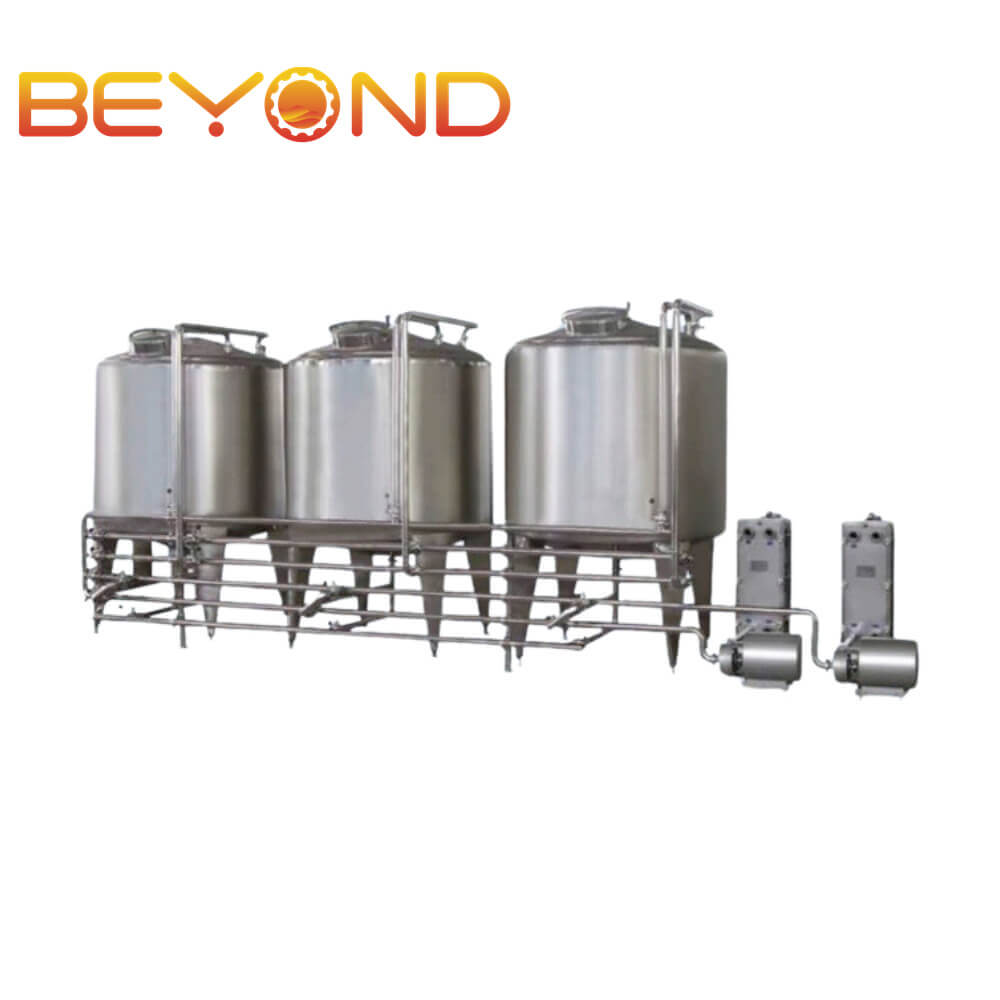

Automatic CIP: Fully automated, with preset cleaning programs. Ideal for large-scale production, as the system automatically adjusts flow rates, temperatures, and cleaning agent concentrations, eliminating manual intervention and ensuring consistent cleaning results every time.

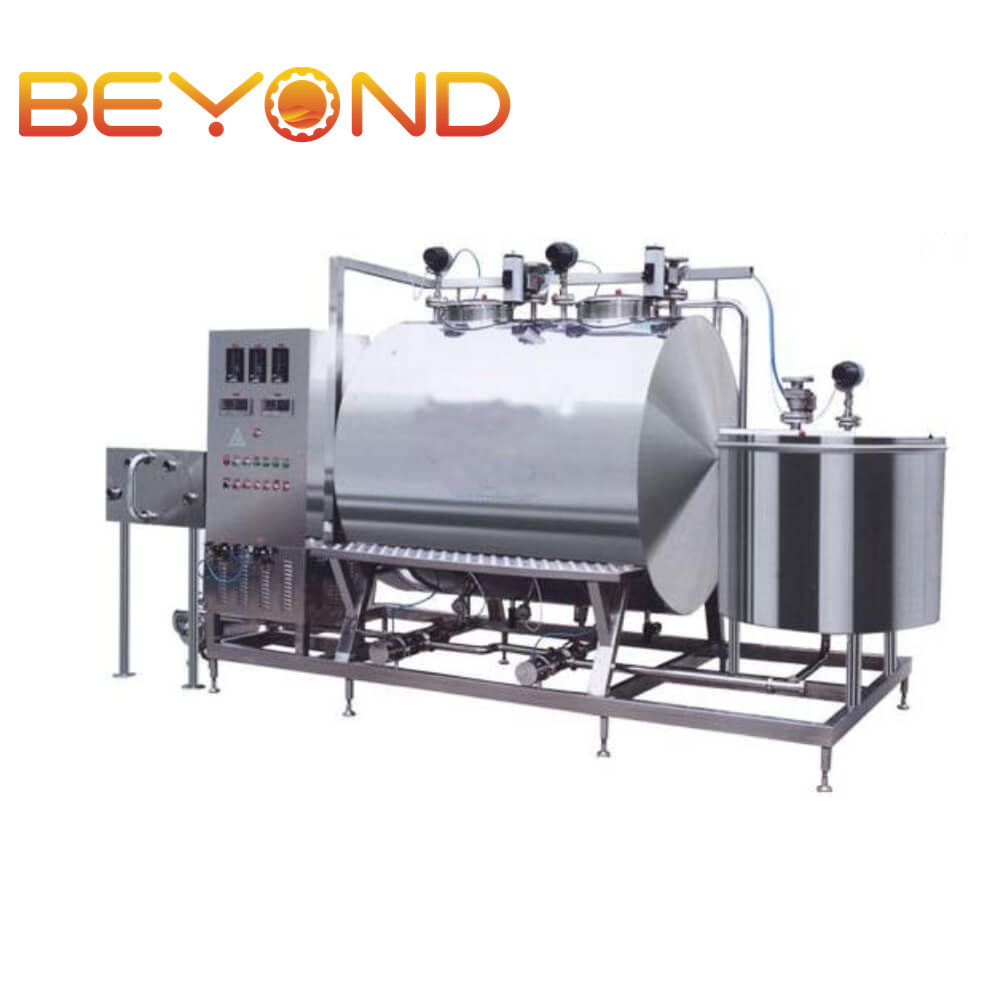

Semi-Automatic CIP: Requires manual initiation of cleaning programs. This system is more flexible and cost-effective, typically used in medium or small-scale production, but it requires more operator monitoring during the process.
If you’re running a larger production line, an automatic CIP system may be more beneficial due to its ability to reduce human labor. On the other hand, a semi-automatic system provides greater flexibility and is more budget-friendly for smaller operations.
How to Use CIP Systems for Fast and Efficient Cleaning
1. Set Up the Right Cleaning Program
Different liquid categories and production processes have different cleaning requirements. CIP systems often have preset cleaning programs that can be adjusted based on the type of liquid being replaced. Typical CIP cleaning steps include:
- Pre-Rinse: Use cold or warm water to remove most residuals.
- Cleaning Agent Wash: Use the appropriate detergent (e.g., alkaline or acidic) to remove stubborn dirt and microorganisms.
- Neutralizing Wash: Use a neutralizing agent to remove any remaining cleaning agents and ensure no chemical residue is left.
- Final Rinse: Use warm or purified water to remove any remaining cleaning agents, ensuring the equipment is completely clean.
2. Monitor the Cleaning Process
Modern CIP systems are equipped with sensors and monitoring software to track key parameters such as flow rate, temperature, pressure, and cleaning agent concentration. These sensors help ensure that the cleaning process meets the desired standards. Operators can adjust settings like flow speed, temperature, or cleaning duration to guarantee thorough cleaning.
3. Recover and Reuse Cleaning Liquids
To enhance cleaning efficiency and reduce costs, some CIP systems come with cleaning liquid recovery devices. These systems filter and recycle cleaning fluids, which not only lowers operational costs but also makes the process more environmentally friendly.
4. Regular Maintenance of CIP Systems
To ensure that the CIP system works effectively, regular maintenance is essential. This includes cleaning the filters, replacing worn-out pipes, and checking the sensors’ accuracy. Proper maintenance will extend the life of the equipment and improve cleaning results.
Considerations for Manual Cleaning
In some situations, an automatic CIP system may not be available, or it may not be suitable for smaller, more complex equipment. In these cases, manual cleaning is necessary. When cleaning manually, operators should pay attention to the following:
1. Choosing the Right Cleaning Agents
The right cleaning agents are crucial for manual cleaning. Common types of cleaning agents include:
- Acidic Cleaners: Suitable for removing mineral deposits and rust from metal surfaces.
- Alkaline Cleaners: Effective for breaking down fats, oils, and protein-based residues.
- Enzyme Cleaners: Used to remove complex organic residues like syrups or dairy-based products.
Choosing the correct agent based on the liquid being replaced will prevent equipment damage and cross-contamination from improper cleaning.
2. Manual Cleaning Steps
Manual cleaning follows a similar process to CIP, but it requires more direct human involvement:
- Disassemble and Pre-Rinse: Remove parts such as filling heads, pipes, and valves, and rinse them with water to remove excess residues.
- Apply and Soak with Cleaning Agents: Apply or soak the components in the right cleaning solution, ensuring full contact with any residues.
- Scrubbing and Brushing: Use brushes or other tools to scrub stubborn stains for thorough cleaning.
- Multiple Rinses: Rinse the equipment multiple times with water until no cleaning agent residue remains.
3. Control Cleaning Time and Temperature
The time and temperature of cleaning are essential for optimal results. Most cleaning agents work better at higher temperatures, so adjust water temperature accordingly. Additionally, ensure that the cleaning time is sufficient to fully break down residues, but not so long that it risks damaging the equipment.
4. Prevent Cross-Contamination
When manually cleaning, it’s vital to avoid cross-contamination between different liquid categories. Clean each category separately, using different brushes, cloths, or tools for each. Once cleaning is done, ensure that all equipment is thoroughly dried to avoid water and residue interaction.
Cleaning Efficiency Tips
- Use Specialized Cleaning Agents: There are cleaning agents designed for specific liquid types that can help improve cleaning speed and efficiency.
- Regular Pipe Cleaning: Don’t forget to regularly check and clean the pipes, as they can also harbor residual liquids.
- Training Operators: Operators’ experience plays a significant role in the quality of cleaning. Regular training ensures that cleaning processes are standardized and efficient.
Conclusion
Cleaning is a crucial aspect of liquid filling production, especially when changing liquid categories. Effectively preventing cross-contamination is key to maintaining product quality. Whether using an automated CIP system or performing manual cleaning, it’s essential to choose the right approach based on your production line’s needs. By continuously optimizing cleaning methods, you can improve operational efficiency and ensure the safety and quality of your final products.
We hope this guide helps you successfully manage the transition between liquid categories while preventing cross-contamination. If you have further technical questions or need specific advice, feel free to reach out!
