5L-10L Water Production Line
Optimize Your Bottling Process with Our 5L Water Filling Machine:
At Beyond Machine, our advanced 5L water-filling machines streamline your production with a compact design that integrates washing, filling, and capping.
Featuring high-speed operation and precise filling, our equipment ensures consistent quality and minimal waste.
Ideal for both small-scale and large operations, discover how our 5L water filling solutions can enhance your beverage manufacturing today!
Water Production Process
5L-10L Water Production Line
| 3L-5L-10L filling production line | |||||||
| model | 2~2~1 | 4~4~1 | 6~6~1 | 9~9~4 | 12~12~4 | 16~16~4 | 20~20~5 |
| capacity(5L)BPH | 200 | 400 | 600 | 1000-2000 | 2000-3000 | 3000-4000 | 4000-5000 |
| Footprint(M3) | 50 | 60 | 100 | 150 | 180 | 200 | 250 |
| Total power（KW） | 10 | 15 | 18 | 20 | 25 | 30 | 40 |
| operator | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Flow Diagram
OF WATER PRODUCTION LINE
Bottle Blowing System
-
Linear construction transports preform to heating and bottle forming.
-
Upgrade production capacity.
-
Upgrade power efficiency.
-
Free bottle designs for 200-3000ml bottle.
-
2000-20000bottles per hour.
Water Treatment System
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning, and filling of the reverse osmosis membrane module.

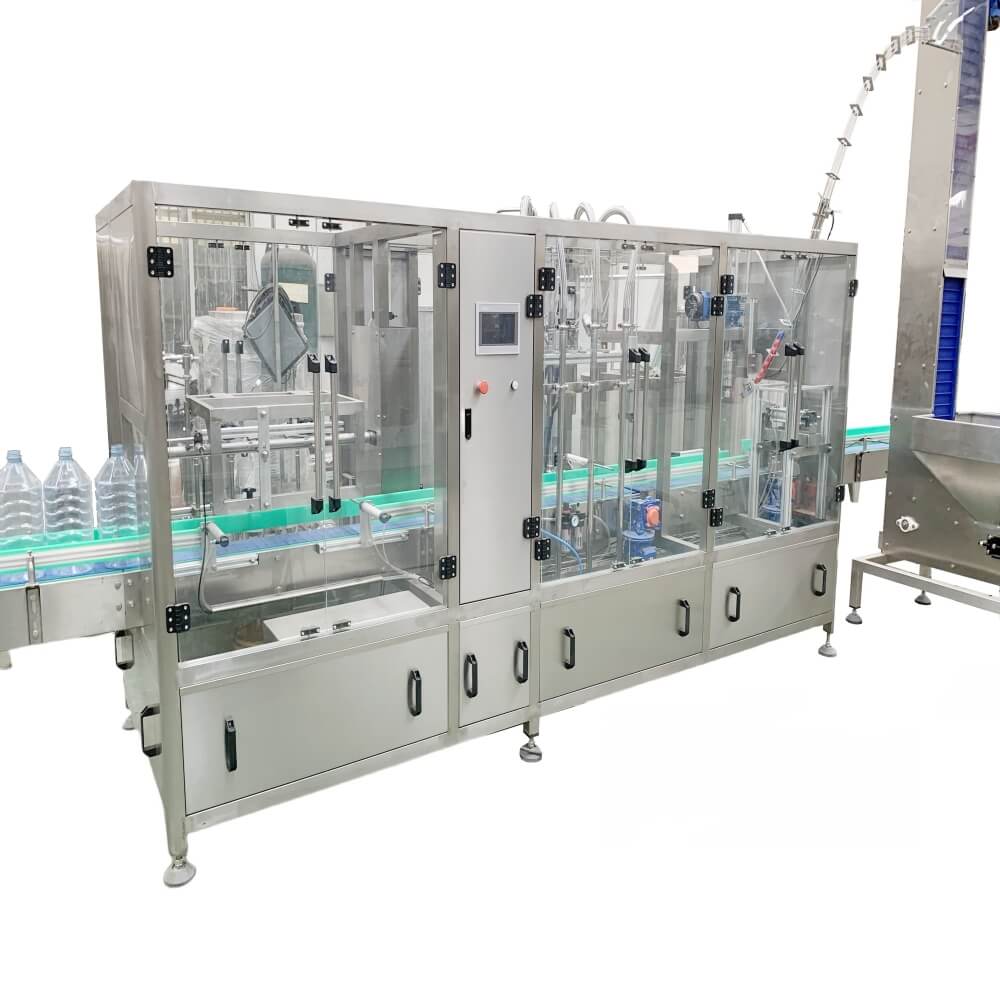

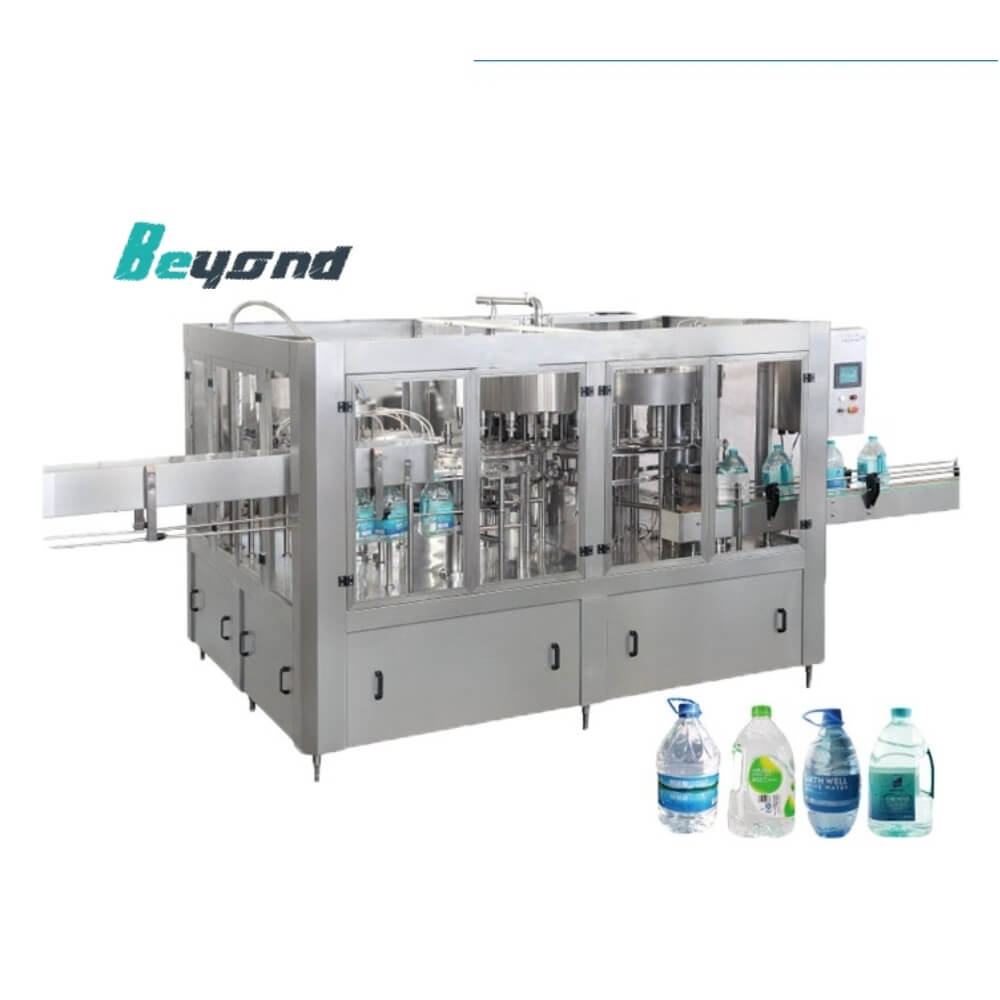

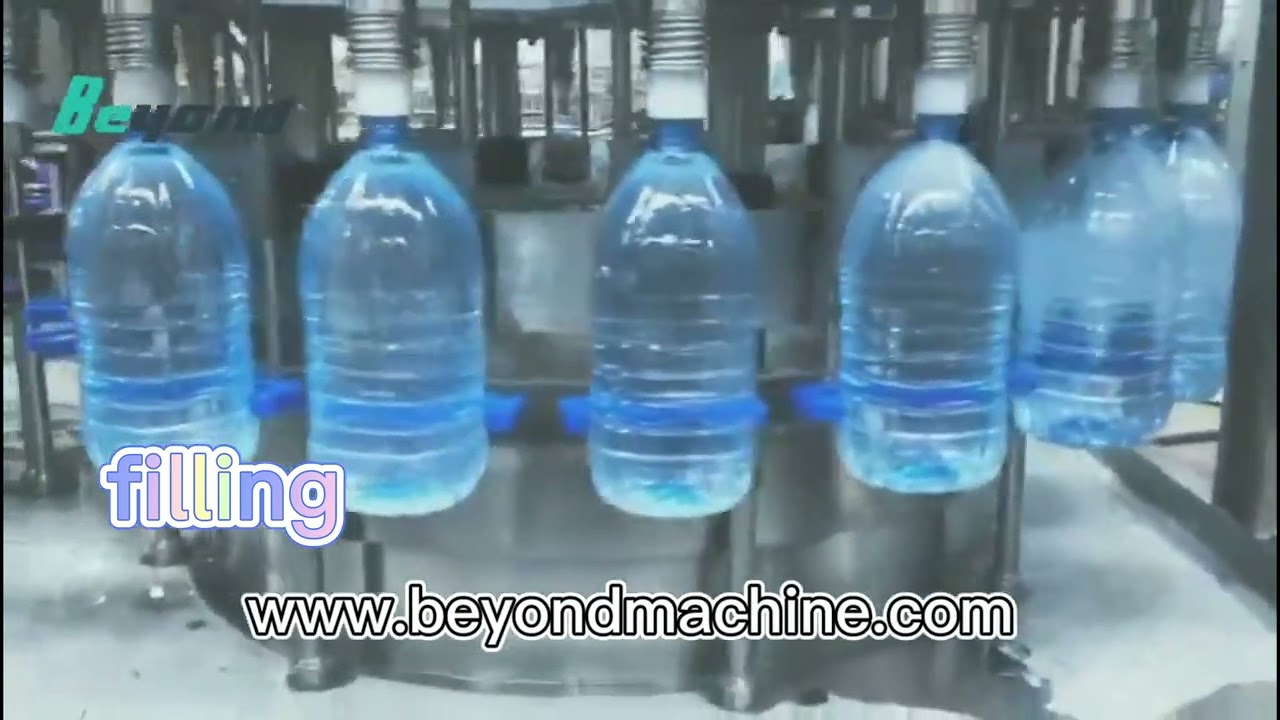

Rinsing Filling Capping Machine
- Fully automated equipment integrates washing, filling, and capping.
- Boosting efficiency and reducing costs.
- Versatile for various liquids including water, wine, and juice.
- User-friendly design simplifies operation and maintenance, extending equipment life and enhancing productivity.
- Wide production capacity range (1500-25000 bottles/hour), can be customized according to customer specific needs
Labeling Machine
- Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
- Operating system using touch-screen control, simple, practical, efficient
- The advanced technology of printer code machine, so that the writing clear, fast, and stable
Packing Machine
- It adopts the imported PLC program automatic control. It has a stable function and precise control.
- It adopts the advanced spiral wind circulating structure and three-layer heat insulation to save resources.
- It has automatic functions like conveying materials, unscrambling, shrinking and cooling & design finalizing flow.
What Our Customer Say
Plastic Bottle Water Production Line
Capacity: 3000BPH
Installed in Liberia(2023)
We acquired a complete A-Z water production line from Beyond Machinery. We asked for professional engineer installation support, which was incredibly helpful. While most of our operators are new, Beyond Machinery also provides comprehensive operation training to ensure everyone can maximize the line’s potential.
The automation and precision of the machinery are truly impressive, allowing us to maintain consistent quality across our production runs.
Plastic Bottle Water Filling Line&Carbonated Drink Filling Line
Capacity: 15000BPH
Installed in Tanzania(2019)
Nice Machine! To improve the capacity of our production, we acquired this line from Beyond Machinery. We told them our basic request, and they offered us a solution. Their technician answered my confusion and drew the machine placing drawing! The drawing helps us settle the machine in the right place!
Glass Bottle Banana Wine Filling Line
Capacity: 2000BPH
Installed in Rwanda(2024)
It’s important to choose a filling machine that’s appropriate for the viscosity and characteristics of banana wine, as well as one that meets the production volume needs of the winery. Beyond helps us a lot to our project. Also wish both of us have a good harvest for our business.
Why Choose Beyond?
- As a leading water filling equipment manufacturer, we provide comprehensive solutions, complete production lines from bottle blowing to packaging.
- Years of focus have enabled us to be well aware of industry trends and customer needs.
- Our equipment uses the latest technology to ensure filling accuracy, speed and hygiene.
- The automated system enables efficient production, and precise control guarantees product quality.
- Our equipment effectively kills pollutants in the water and meets national hygiene standards.
- Choosing us means choosing an innovative and reliable partner to help you achieve long-term success in a competitive market.
- National high-tech enterprise certificate in 2019
- With 35 invention patents
- Jiangsu Province private technology enterprises,
- Technology-based medium-sized enterprises,
- Jiangsu province high-tech enterprises
- Specialized in the beverage machinery industry over 16+ years.
- Export to over 80+ countries.
- Get a quote in 24 hours
- 2 years warranty
- CE certificate
- Distributor available in Canada, Australia, India, etc
